CS 152 - Lecture 9

Cover page image

Context-Free Grammar

Language: Set of valid token sequences
Terminal symbol: Token in the language. Ex: " class" "3.14" "+"
Nonterminal symbol: Symbols in the grammar. Ex. expression
Production: Rule for replacing a nonterminal by a sequence of nonterminals and terminals
```
term ::= factor "*" term
```
Can have more than one production for the same nonterminal
```
term ::= factor
```

Derivation: Sequence of productions

term ::= factor "*" term
  ::= factor "*" factor "*" term
  ::= factor "*" factor "*" factor

Context-free: The replacement doesn't depend on the context of the nonterminal

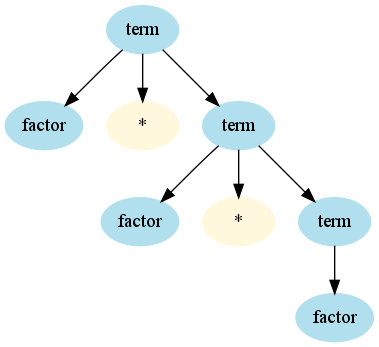

Parse Tree

Shows derivation process
Not the same as an expression tree!
Parser: Component that follows derivation process, yielding some actions
Most common actions: Building an expression tree. (Next lecture)

Grammar Example: List of Numbers

Want to generate
```
(1)
(1, 24, 4)
()
```
```
list ::= "(" contents ")"
```

contents ::=
contents ::= number
contents ::= number "," contents

No, that's wrong. We could derive (1, 24, )

Grammar Example: List of Numbers

Try again

list ::= "(" contents ")"
list ::= "(" ")"

contents ::= number
contents ::= number "," contents

Easy to see by induction that contents yields n numbers separated by n - 1 commas

Extended BNF

Backus-Naur form: Original syntax for grammar rules in Algol-60
Extended by conveniences for frequently recurring constructs
Alternatives A | B
Repetitions
- 0 or more (A)* or {A}
- 1 or more (A)+
- 0 or 1 (A)? or [A]

For example,

list ::= "(" ( number ( "," number )* )? ")"

Parser Generators

Parser generator: Produces a parser from a given grammar
Works in conjunction with lexical analyzer
Examples: yacc, Antlr, JavaCC
Programmer specifies actions to be taken during parsing
Far better than writing a parser by hand
No free lunch: need to know parsing theory to build efficient parsers
Scala has a built-in “combinator parser”

Combinator Parser

Each nonterminal becomes a function

Terminals (strings) and nonterminals (functions) are combined with operators

Sequence ~
Alternative |
0 or more rep(...)
0 or 1 opt(...)

class SimpleLanguageParser extends JavaTokenParsers {
  def expr: Parser[Any] = term ~ opt(("+" | "-") ~ expr)
  def term: Parser[Any] = factor ~ opt(("*" | "/" ) ~ term)
  def factor: Parser[Any] = wholeNumber | "(" ~ expr ~ ")"
}

Will replace Parser[Any] with something more useful later

Combinator Parser Result

String returns itself
opt(P) returns Option: Some of the result of P, or None (see next slide)
rep(P) returns List of the results of P
P ~ Q returns instance of class ~ (similar to a pair)

For example,

val parser = new SimpleLanguageParser
val result = parser.parse(parser.expr, "3 - 4 * 5")

sets result to

((3~None)~Some((-~((4~Some((*~(5~None))))~None))))

We'll transform this to something more useful in the next lecture
After changing (x~None) to x, Some(y) to y, and ~ to spaces:
```
(3 (- (4 (* 5))))
```

The Option Type

Option type expresses “0 or 1” relationship
Case class with two cases: Some, None

Example: List.find returns Option[A].

val result = lst.find(_ % 2 == 0)
result match {
  case Some(x) => println(x)
  case None => println("No match")
}

Why not return null if there is no match?
Int can't be null
null might be a valid value in the collection
null can lead to NullPointerException

Lab

You work with a buddy
One of you writes the code (coder), the other types up answers (scribe)
When you get stuck, ask your buddy first!
Switch roles each lab. The previous scribe is the coder for this lab.
The scribe submits lab work in lab8/report.txt inside the Git repo. Include the coder's name in the report!
If the coder wants to submit something, that's cool too. Do whatever is easy.

Step 0

Make an SBT project lab8:

cd cs152 # (or whereever you store your git repo)
PROJECT=lab8 # (or whatever project you want to make)
echo $PROJECT | sbt new cayhorstmann/cs152-seed.g8
cd $PROJECT
find . -name Hello*.scala -exec rm {} \;

If you use Eclipse, run
```
sbt eclipse
```
Then start Eclipse and import the project.
If you use IntelliJ, load the SBT project from the lab8 directory.

Step 1

Here is the complete application that was discussed in the lecture:

import scala.util.parsing.combinator._

class SimpleLanguageParser extends JavaTokenParsers {
  def expr: Parser[Any] = term ~ opt(("+" | "-") ~ expr)
  def term: Parser[Any] = factor ~ opt(("*" | "/" ) ~ term)
  def factor: Parser[Any] = wholeNumber | "(" ~ expr ~ ")"
}

object Lab8 extends App {
  val parser = new SimpleLanguageParser
  val result = parser.parse(parser.expr, "3 - 4 * 5")
  println(result.get)
}

Run the application. What is the output?
Now change the expression to 3 * 4 - 5. How does the output differ?
How does this indicate that the grammer “knows” that multiplication binds more strongly than addition?
The factor rule recurses back to the expr rule. Give an example input to the parser that demonstrates this feature. What is your input? What is the output?
What happens when you give an illegal input to the parser? What input did you give, and what was the result?

Step 2

Add the following function to the SimpleLanguageParser (and not to Lab8):

def eval(x : Any) : Int = x match {
  case a ~ Some("+" ~ b) => eval(a) + eval(b)
  case a ~ Some("-" ~ b) => eval(a) - eval(b)
  case a ~ Some("*" ~ b) => eval(a) * eval(b)
  case a ~ Some("/" ~ b) => eval(a) / eval(b)
  case a ~ None => eval(a)
  case a : String => Integer.parseInt(a)
  case "(" ~ a ~ ")" => eval(a)
}

In your main program, print the value computed by parser.eval(result.get). What output do you get when the parser input is 3 - 4 * 5? 3 * 4 - 5?
What does the eval function do?
Give an input that shows that the last matching rule is necessary. What is your input? What is the output? What result do you get when you comment out the last matching rule?

Step 3

Now we want to enhance the language and add support for statements such as
```
val x = 3 + 4 * y
```
In BNF, this would be
```
valdef ::= "val" identifier "=" expr
```
Add a valdef type to the combinator parser that represents such a definition. (To see how to parse an identifier, go to the scaladoc of JavaTokenParsers and then click on the source link on the top of the file.)

What is the type that you added?
What do you get when you parse val x = 3 + 4? Hint: Remember to call
```
parser.parse(parser.valdef, "val x = 3 + 4")
```
What happens when you parse val x = 3 + 4 * y? (Hint: Look closely at the output. Where is the y? Why?)
What do you do to fix the problem? (Hint: Handle variable identifiers at the same level as numbers.)
Now what is the parser output?
