CS 185C/286 - Lecture 6

Cay S. Horstmann

Lecture 6 Quiz 1

Put your answer into Piazza.

Android 3.0 adds the ability for you to define the on-click behavior for a menu item in XML, using the android:onClick attribute. The value for the attribute must be the name of a method defined by the activity using the menu. The method must be public and accept a single MenuItem parameter—when the system calls this method, it passes the menu item selected.

Is this a good idea?

1. Yes—then one can just add android:onClick=onOptionsItemSelected to each menu item without having to install any listeners.
2. Yes—then one can install different listeners for each item without having to have a switch statement in the listener.
3. No—then one needs to have a different listener for each item.
4. No—then one doesn't separate UI layout from behavior.

Lecture 6 Quiz 2

Which of the following “useful methods” are actually useful (i.e. can't be done with the normal java.io.File API)?

1. getDir
2. deleteFile
3. fileList
4. None of them

Today's Lecture/Lab

• The Cinequest Client
• Testing

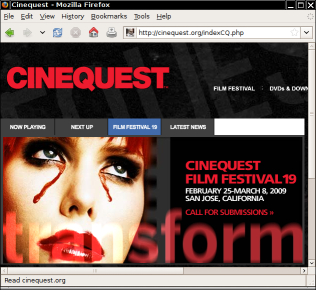

Cinequest

• San Jose Film Festival
• Every year in the spring in downtown San Jose
• This year: February 26 - March 10, 2013
• Mobile apps developed by SJSU CS Department
• Fall 2008 Blackberry, Fall 2010 Android/iPhone

App Functionality

• List of films and events
• Search by title or show time
• Can make personalized schedule
• Works offline

Android-Specific UI

• Mostly lists
• FilmDetail shows detailed description, director, etc., image(s), show times
• Login
• Save/restore schedule
• Wait dialog

Plain Old Java Code

• Entities (film, schedule, program item, ...)
• XML parsers for these items
• HTML subset → Rich text parser
• Character conversion utilities (HTML entities, Win 1252 code page)
• Composable actions with progress reports
• Simple LRU cache

Platform Abstraction

• Common Platform interface for Blackberry (obsolete), Android, Java SE
• Done pre-Android to improve testing
• Anything that's different is abstracted out
• Web connections, XML parsing, logging, sorting (!), serialization
• Should be simplified with the demise of Blackberry

Unit Tests

• Run in Java SE, not on the device
• Covers everything other than the UI
• Uses JavaSEPlatform implementation of Platform interface
• JUnit 4
• Some tests need to be updated every year because the server doesn't keep old data
• More tests wanted
• UI testing wanted

Server Part

• Written in PHP by Lou Bash from Cinequest
• Restful API (before it was fashionable ☺)
• Queries/updates MySQL database
• Query results in XML
• Updates simple HTML POST
• Uses Win 1252 encoding ☹
• Documented here

Reading Before Next Class

• Film, FilmParser, FilmParserTest
• Server Protocol up to (but not including) User Schedules. Also check out the relevant sample queries at the end.

Lab

• Bring your laptop to the lab
• You will work with a buddy
• One of you writes code, the other types up answers
• Switch roles each lab
• Submit lab work to git

Checking Out and Running the App

1. Scribe: Inside your workspace directory, make a directory lab06 for the report.
2. Driver: Outside your workspace directory, make a directory lab06.
3. In that directory, run git clone https://github.com/cayhorstmann/cinequest.git
4. Follow these instructions to build the project.
5. Target Android 2.2. How did you do that?
6. Run the app. What happens?
7. What's the first film of March 1?

Running a Test

• Run the HParserTest as a unit test. Which unit tests failed?
• That's a problem with these tests. The IDs change from one year to the next. Change the item ID to 1815. Why 1815? I ran this query and spotted ID 1815.
• Now what happens?

Making a Change

• Look at the ProgramItem class. Where did you find it?
• Note that it uses a Vector to collect the films. (Most program items have one film, but something like “Collected Shorts” has several.) Nowadays, one would use an ArrayList<Film>, but on the Blackberry there was no ArrayList. We no longer care about that, so let's make the change. Change Vector to ArrayList<Film> and fix any errors in the ProgramItem class that resulted.
• In the previous step, you changed the public interface of the ProgramItem class. To find out who called the getFilms method (which you changed to return an ArrayList<Film>), right-click and select References → Workspace. Who called it?
• Fix up all callers. What changes did you make?
• Your program should compile now. What happens when you run ProgramItemParserTest?
• Ok, that didn't work. It was an old test. How do you fix the test?
• Nice, but that never tested the getFilms method. How can you test it?

Making a Patch

• This is a large project, and you don't want to check in the whole thing into your lab06 subrepo to show your work. You should make a patch to show the difference between the last push and the current status. First commit your work, then run

  git format-patch -1 --stdout

  . What happens?
• Driver: Save that in a file, put it in the lab06 subdirectory, and submit.
