CS 46B - Lecture 9

Pre-class reading

• Sections 13.5

Mutual Recursions

• Problem: to compute the value of arithmetic expressions such as

  3 + 4 * 5
  (3 + 4) * 5
  1 - (2 - (3 - (4 - 5)))

• Computing expression is complicated
  • * and / bind more strongly than + and -
  • Parentheses can be used to group subexpressions

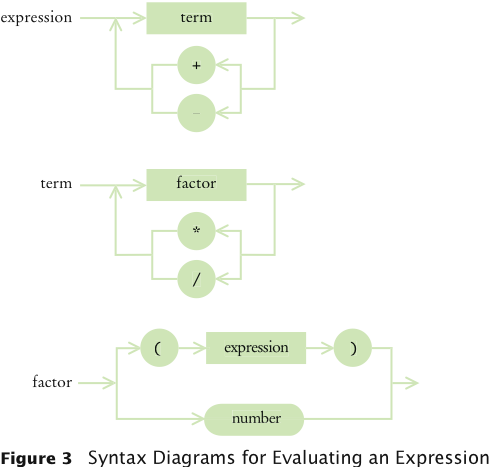

Syntax Diagrams for Evaluating an Expression

Mutual Recursions

• An expression can broken down into a sequence of terms, separated by + or -
• Each term is broken down into a sequence of factors, separated by * or /
• Each factor is either a parenthesized expression or a number
• The syntax trees represent which operations should be carried out first

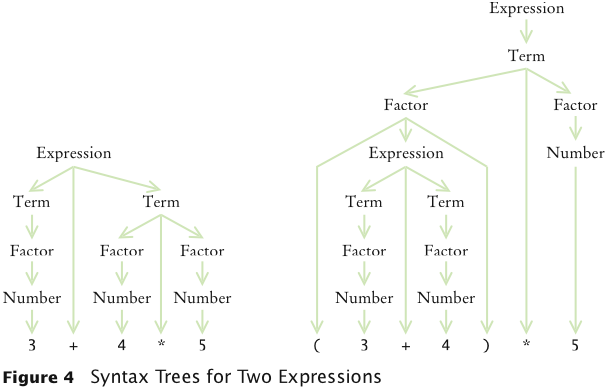

Syntax Tree for Two Expressions

Mutually Recursive Methods

• In a mutual recursion, a set of cooperating methods calls each other repeatedly
• To compute the value of an expression, implement 3 methods that call each other recursively:
  • getExpressionValue
  • getTermValue
  • getFactorValue

Lecture 9 Clicker Question 1

Why do we need both terms and factors?

1. Factors are combined by multiplicative operators (* and /), terms are combined by additive operators (+, -).
2. Terms are combined by multiplicative operators (* and /), factors are combined by additive operators (+, -).
3. We need both so that multiplication can bind more strongly than addition.
4. We need both so that we can have mutual recursion

The getExpressionValue Method

public int getExpressionValue()
{
   int value = getTermValue();
   boolean done = false;
   while (!done)
   {
      String next = tokenizer.peekToken();
      if ("+".equals(next) || "-".equals(next))
      {
         tokenizer.nextToken(); // Discard "+" or "-"
         int value2 = getTermValue();
         if ("+".equals(next)) value = value + value2;
         else value = value - value2;
      }
      else
      {
         done = true;
      }
   }
   return value;
}

The getTermValue Method

The getTermValue method calls getFactorValue in the same way, multiplying or dividing the factor values

The getFactorValue Method

public int getFactorValue()
{
   int value;
   String next = tokenizer.peekToken();
   if ("(".equals(next))
   {
      tokenizer.nextToken(); // Discard "("
      value = getExpressionValue();
      tokenizer.nextToken(); // Discard ")"
   }
   else
   {
      value = Integer.parseInt(tokenizer.nextToken());
   }
   return value;
}

Lecture 9 Clicker Question 2

What happens if you try to parse the illegal expression 3+4*)5? Specifically, which method throws an exception?

1. getExpressionValue
2. getTermValue
3. getFactorValue
4. main

Using Mutual Recursions

To see the mutual recursion clearly, trace through the expression (3+4)*5:

• getExpressionValue calls getTermValue
  • getTermValue calls getFactorValue
    • getFactorValue consumes the ( input
    • getFactorValue calls getExpressionValue
      • getExpressionValue returns eventually with the value of 7, having consumed 3 + 4. This is the recursive call.
    • getFactorValue consumes the ) input
    • getFactorValue returns 7
  • getTermValue consumes the inputs * and 5 and returns 35
• getExpressionValue returns 35

Lecture 9 Clicker Question 3

Why does the expression parser use mutual recursion?

1. To compute the value of an arithmetic expression more efficiently than with a loop
2. To make * and / bind stronger than + and -
3. To handle both operators such as * and / and numbers such as 2 and 3
4. To handle parenthesized expressions, such as 2+3*(4+5)
