CS46B Lab 1

Copyright © Cay S. Horstmann 2010, 2012
This work is licensed under a Creative Commons Attribution-Noncommercial-Share Alike 3.0 United States License.

Instructions

You work in pairs
One of you is the “scribe”, the other the “driver” who runs the tools
The scribe answers the questions, except for the questions that say "paste the code"—the driver does the pasting.
Next class, you switch roles
Scribe: Start writing a report with the title “Scribe's name (Scribe) / driver's name (Driver)”, for example Lab 1 Fred Foo (Scribe) / Becky Bar (Driver)
Driver: Start writing a report with the title “Driver's name (Driver) / scribe's name (Scribe)”, for example Lab 1 Becky Bar (Driver) / Fred Foo (Scribe)
When a step contains a question (marked like this), the scribe puts the answer in scribe the report. Otherwise, just put “Step n: done”
When a step asks "what is your code", the driver pastes the code into the driver report.
Stuck? Discuss with your buddy, and if you are both stuck, ask for help!!!

Objectives

Ensure that every student is productive with a professional IDE
Ensure that every student follows the lab roles

Learning Outcomes

Create an IDE project with existing sources
Edit, compile and run a program consisting of multiple source files
Use the autocompletion feature of an IDE to complete identifiers and produce import statements, getters/setters, constructors, and declarations of overriding methods
Implement and run a program that reads a file that may be located anywhere in the file system
Refresh writing and tracing pseudocode
Work with the lab partner in the designated role

Estimated time: Three 40-minute sessions

A. Making a Project

For this lab (and many other labs for this course), you need the NetBeans IDE installed. Any recent (6.x or 7.x) version will do. If you don't have NetBeans installed, go to http://netbeans.org, click on Download, and select the Java SE version.

Download this code and unzip it on your computer. (Remember to actually unzip the file. Some operating systems—which we won't name to protect the guilty—display a zip file as a folder, giving you the illusion that it is unzipped.)

You'll get a directory lab1 containing a directory src, which contains several Java files. (Some operating systems—which we won't name ...—will make a lab1 directory inside a lab1 directory. That's ok—just keep it in mind in the next step.)

Where is the lab1 directory located on your computer? Put the answer into your lab report.

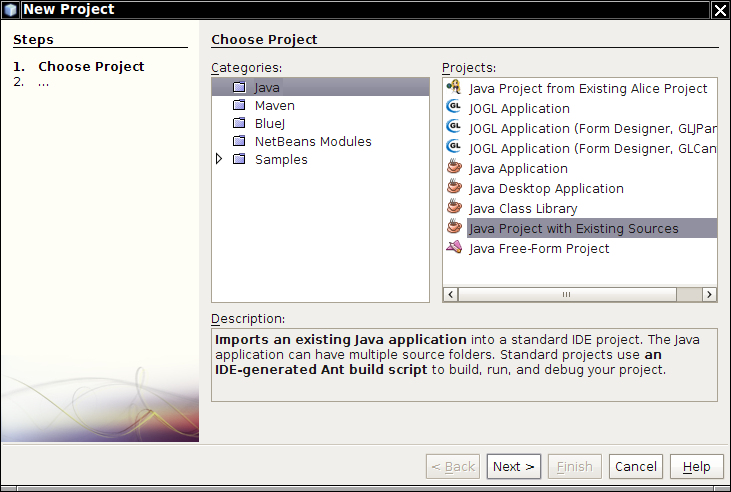

Start NetBeans and select File → New Project from the menu. In the dialog, select Java and Java Project with Existing Sources.

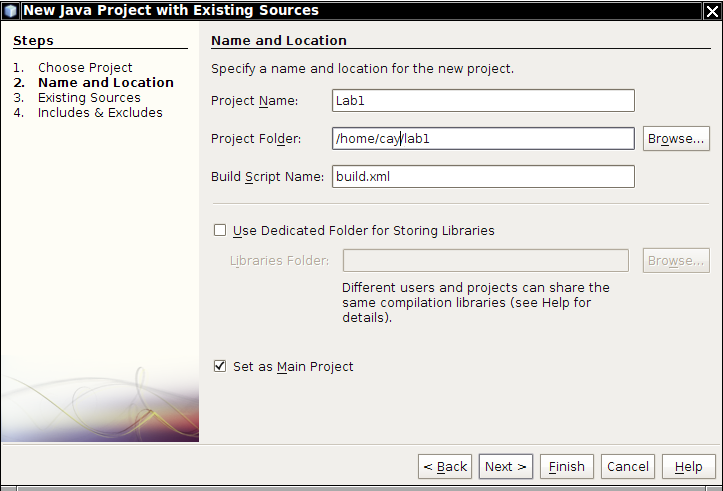

Give the project a name Lab1. Click on the Browse button and select the lab1 directory. You want to select the directory containing the src subdirectory, not the src subdirectory itself. (You'll get a chance to fix the path in the dialog after selecting the directory.)

Click Next.

Click Add Folder next to the Source Package Folders text area. Select the src folder inside the lab1 folder.

Click Finish.

Which Java files are in your project? Which of them have a red ! next to them? Put the answer into your lab report.

Some code was left out from the sample program. You need to fill it in before you can run the program. We will do that in this lab.

B. Overriding a Method in the AddressBook Interface

What is the first error in the ArrayListAddressBook class?
Look at the AddressBook interface. Which method(s) does the ArrayListAddressBook class not implement?
Scroll down to the end of the file and add a blank line before the last }. Make a blank line and hit Ctrl+Space. Pick remove from the menu.

What happens?
Save your file. What happened to the “abstract class” error message?

Note: We will supply a better implementation of the removeEntry method in the next lab.

C. Implementing Getters and Setters

What other errors remain in the ArrayListAddressBook class?
In which class do they need to be fixed?
Add private fields name, key, and value in that class, all of type String.

Then move the cursor in a blank line below those fields and hit Ctrl+Space.

Select getName. Repeat, selecting getKey. Repeat twice more to add getValue and setValue.

What happens?
Now you know why we make you use NetBeans and not BlueJ. As you work with more sophisticated programs, you want all the support that you can get from a professional development environment.

D. Implementing a Constructor

Save all files (File →Save All from the menu). What error message do you get now?
You need to add an Item constructor. Go to the class, put the cursor on a blank line, and hit Ctrl-Space.

Which option do you choose?
What code is generated when you choose it?

Your code should now be free from errors.

E. Adding a Main Method

Look at the Projects window at the left side of the NetBeans window. The Lab1 project should be in boldface. If not, right-click and select Set as Main Project

Select Run → Run Main Project from the menu. What happens?
Right-click on <default-package> in the Projects window and make a new class AddressBookDemo. Add a main method
```
public static void main(String[] args)
{
   JFileChooser
}
```
then move the cursor next to JFileChooser and hit Ctrl+Space.

What happens?
Continue editing the main method like this:
```
JFileChooser chooser = new JFi
```
Hit Ctrl+Space again.

What happens?
Continue editing the main method like this:
```
JFileChooser chooser = new JFileChooser();
int result = chooser.show
```
Hit Ctrl+Space again.

What happens?

Pick showOpenDialog. Continue editing the main method like this:

JFileChooser chooser = new JFileChooser();
int result = chooser.showOpenDialog(null);
if (result == JFileChooser.)

Pick APPROVE_OPTION.

Continue editing the main method like this:

JFileChooser chooser = new JFileChooser();
int result = chooser.showOpenDialog(null);
if (result == JFileChooser.APPROVE_OPTION)
{
   String filename = chooser.getSelectedFile().getPath();
}

Where were you able to let NetBeans do the typing for you by strategic use of Ctrl+Space?

After getting the file name, make an AddressBook variable book and initialize it.
(Note that you declare the variable to be an interface. It is always a good idea to use interface variables. Of course, when you call the constructor, you must use a class.)

What is your code?
Call the load method to load the file that was returned.

F. Running the Program

Save this file as deptdir.txt somewhere on your hard disk. Run the program (Run → Run Main Project from the main menu). In the file chooser, navigate to whereever you saved the deptdir.txt file, and click on Open.

What happens next?
Add code to the program that looks up the phone number of your instructor. What is it?
Add code to the program that adds your email address to the address book, then save it. What is the code?
What happens when your program runs? (Look into the deptdir.txt file.)

G. Adding the Comparable Interface

Add the following method to ArrayListAddressBook:
```
    public Item getFirst()
    {
        return Collections.min(items);
    }
```
What error do you get?

Tip: It's easiest to spot the errors when you open the Tasks window. (Choose Window -> Task from the menu.) Then click on the "filter" icon at the left of the Tasks window and make sure that Compiler Errors is checked in the Default Filter. Do it now!
How do you fix it with Ctrl-Space?
What error do you get now? Why?
There are two choices—to implement the Comparable interface or to make a Comparator object. Let's do the interface.
Which class needs to implement it?
Add the implements Comparable clause to that class. Save the file.
What additional error do you get now?
How do you ”fix” it with Ctrl-Space?
Ok, it's not really fixed—you still need to provide the code for the compareTo method.
- Cast o to an Item other
- Compare the names with String.compareTo. If the names are different, return whatever String.compareTo returned.
- If the names are the same, compare the keys in the same way.
- If the keys are the same, return value.compareTo(other.value).
What is the code of your method?

At this point, all bugs should have gone away. Ignore warnings about unchecked or unsafe operations—that's because we don't use Comparable<Item>.
Next, add a call System.out.println(book.getFirst()) after the call to book.load(filename).
What happens? Why?

(If nothing happens, you didn't declare book to have type AddressBook. Retrace step E6 and fix it up.)
Add the getFirst method to the interface. Your program should now run without errors.
What does it print?

H. Writing a Generic Method

Add the following class to your project:

import java.util.ArrayList;

public class Util
{
   /**
      Returns the smallest element in an array
      @param values an array of non-null Comparable values of length >= 1
      @return the smallest value in values
   */
   public static Comparable smallest(Comparable[] values)
   {
      Comparable smallestSoFar = values[0];
      for (int i = 1; i < values.length; i++)
         if (values[i].compareTo(smallestSoFar) < 0)
            smallestSoFar = values[i];
      return smallestSoFar;
   }

   /**
      Returns the smallest element in the array that comes after a given value.
      @param values an array of non-null Comparable values
      @param after a value that may or may not be present in the array
      @return the smallest value in the array larger than value, or null if there isn't one
   */
   public static Comparable smallestAfter(Comparable[] values, Comparable after)
   {
      return null;
   }
}

Add the following method to AddressBook:

Item getNext(Item previous);

Add the implementation of that method in ArrayListAddressBook. Remember to use Ctrl-Space.

Change the body to

      Item[] itemArray = new Item[items.size()];
      items.toArray(itemArray);
      Comparable result = Util.smallestAfter(itemArray, previous);
      return result;

There is an error in the body.

Why? How do you fix it?

Now we want to implement the Util.smallestAfter method. Discuss with your buddy how you can do this. Write pseudocode on a piece of paper. Write your and your buddy's name on the paper and turn it in after the lab.
Pseudocode is just like Java code, except you can use words and phrases such as

if values[i] is less than values[j]

or

while i goes from 0 to the end
Walk through the pseudocode with the call
```
smallestAfter(values, 5)
```
where values contains the Integer objects 2, 6, 5, 4, 1, 7

Make a sheet for all the variables in your pseudocode, write their initial values, execute the steps in your mind, cross out values as they change and replace them with their new values.

Turn in your sheet after the lab.
Now turn your pseudocode into Java.
What is it?
Using the getFirst and getNext methods, print the third item (in sorted order) in the address book.
What is it?
