CS 40 - Lecture 14

Cay S. Horstmann

Lecture 13 Recap

• Java: Industrial-strength programming language
• Greenfoot: environment for developing Java programs
• Image manipulation: Edit image by getting/setting pixels

Personal Computer Security

• Who attacks your computer?
• What are their motivations?
• How do they do it?
• What can you do to protect yourself?

Example: The Morris Internet Worm

• November 2, 1988 (!)
• Program attacked most of the several thousand (!) machines on the internet
• Exploited “buffer overflow” problem in finger daemon
• Attacked trusted neighboring computers
• Due to programming error, consumed most of computers' resources
• Released by a Cornell University student, Robert Morris...
• ...who was sentenced to 3 years probation, 400 hours community service and a $10,500 fine

Buffer Overflow

• Program code and data are all contained in memory
• Any memory block (called “buffer”) must have some maximum size
• What happens if the buffer is filled with data that is longer than the buffer?
• Java: An error occurs
• C/C++: If no explicit check, the memory beyond the buffer is overwritten
• Exploit: Send excessively long data block over network, overwrite part of the program

Lab 1. Buffer Overflow

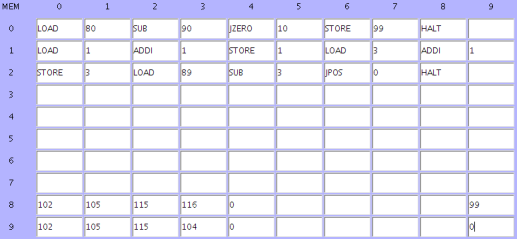

• Password check in simple computer (Program in next slide)
• Password encoded in Unicode (f = 102, i = 105, s = 115, h = ...)
• User provided password put in memory locations 80, 81, etc.
• Correct password in locations 90, 91, ..., 98
• When checker is finished and passwords match, location 99 is 0
• When passwords don't match, location 99 is some non-zero value

Lab 1. Buffer Overflow

Lab 1. Buffer Overflow

You are the attacker. Suppose you can fill locations 80, 81, etc., and there is no overflow check. Fill them so that the password check will succeed.

What do you fill them with? ActiveLecture.org

Attack Categories

• Attacker's problem: How to run code on your computer
• Pathways:
  • Make network connection to your computer and send data that exploits software vulnerability (such as buffer overruns)
  • Trick you into launching an application
  • Cause malicious script to run on your computer

Launching Applications

• Clickin on app launches it (e.g. Alice, Firefox)
• Clicking on document launches associated app
• E.g. click on Word file to launch Office
• Installer = Special application that installs another app
• Once an application is installed, the operating system trusts it
• Don't click unless you trust it

Example: The Image That Isn't

• What happens when you click on attractive_person.gif?
• Launches associated viewer (Paint, Firefox—app depends on your computer)
• Except...when it is was really attractive_person.gif.exe!
• Too bad Windows hides known file extensions in order to be “helpful”
• Never left-click on attachments. Ok to right-click and choose Open With

Scripts

• Script = program in a simple language, usually tied to an application
• Examples: VBScript (Microsoft Office), JavaScript (web browser)
• Purpose: Automation of repetitive task (Office macros)
• Easy to carry out powerful tasks (erase file, send email)
• Runs automatically upon certain events that are not usually perceived as dangerous:
  • Visiting a web page
  • Opening an email message or attachment

Example: The Love Bug

• May 2000: Internet was flooded with email messages with subject line “I LOVE YOU”
• When opened in Microsoft email reader, script ran immediately (without asking)
• Script opened address book and sent I LOVE YOU messages to everyone
• No damage (except having to explain that you didn't actually love all those people)
• Authored by Onel de Guzman, as part of his computer science master's thesis. (He didn't graduate.)

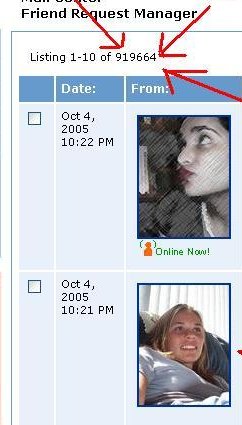

Example: Samy

• Scripts in browser run automatically (JavaScript, Java applets)
• In theory, they are safe, but subtle browser bugs can make them unsafe
• October 2005: Samy “cross-scripting attack” added a million MySpace users to the author's friend list. You were added if you viewed the page of one of the “friends”
• Samy Kamkar sentenced to 3 years probation, 90 days community service

Blocking Attacks

• Network connections:
  • Use Firewall
  • Install OS patches
• User action:
  • Use anti-virus software and pay for updates
  • Think before you click
  • Read those security warnings
• Script:
  • Use Firefox, not IE
  • Install patches
  • Consider NoScript extension

Lab 2. How Did the Attack Work?

Read this article: http://www.eweek.com/article2/0,1895,1940747,00.asp. How did the malware get to the user's computer?

ActiveLecture.org

1. Kazaa installed it over the network
2. The user installed it
3. A script installed it

Attacker Types

• Graffiti artists—bragging, no theft or vandalism
• Thieves—look for account numbers, interfere with financial transactions
• Zombie masters—use your computer for their own purposes (usually sending email spam)
• Spammers—display ads on your computer, watch your browsing/shopping
• Spies—invade your privacy, spy on your email, communication, etc.
• Vandals—destroy your data

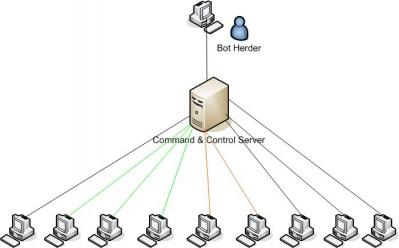

Threat: Botnets

• Network of infected computers
• Remotely controlled by criminals
• Usually used for sending spam email
• Users are blissfully unaware
• Estimate: about 25% of all computers are infected (http://news.bbc.co.uk/1/hi/business/6298641.stm)

Threat: Stealing Personal Data

• Infected computer monitors keystrokes, web pages
• Looks for credit card numbers, CVV codes, bank account numbers, addresses, social security numbers
• Botnet operators sell data to criminals: http://www.cio.com/article/135500/
• Data used to pump/dump stocks, purchase goods, clean out bank accounts
• Who pays? With credit cards (but not debit cards), you are protected. With electronic funds transfer, you are not: http://www.iht.com/articles/2005/02/15/business/netbank.php

Lab 3. Categorize Attacker

• Read through this article: http://www.eweek.com/article2/0,1895,2214103,00.asp
• Once your computer is infected with the fake software, how will you be harmed? ActiveLecture.org
  1. Vandalism
  2. Theft of money
  3. Having your computer turned into a Zombie
  4. Spam
  5. Spying / Theft of your data

What Can You Do?

• Install a reputable security product...
• ...but only one!
• Install all operating system and browser patches
• Think before you click!
• Never run as administrator unless you install software
• Read those security dialogs. If in doubt, don't agree.
• Consider Linux, Mac OS X or Windows Vista over Windows XP

Reminders

• Homework #5 due tonight
• Project proposals due tonight
