CS 46B - Lecture 9

Pre-class reading

• Sections 13.5 - 13.6, Worked Example 13.1, Worked Example 13.2

Mutual Recursions

• Problem: to compute the value of arithmetic expressions such as

  3 + 4 * 5
  (3 + 4) * 5
  1 - (2 - (3 - (4 - 5)))

• Computing expression is complicated
  • * and / bind more strongly than + and -
  • Parentheses can be used to group subexpressions

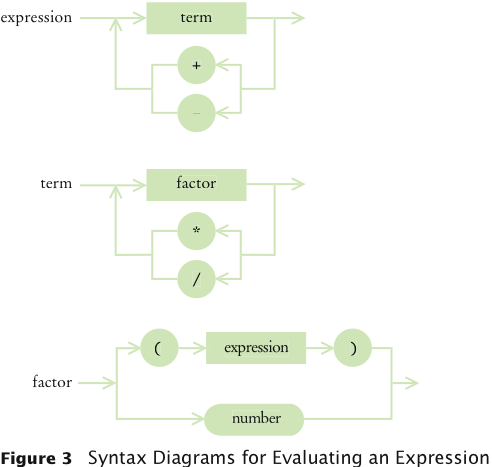

Syntax Diagrams for Evaluating an Expression

Mutual Recursions

• An expression can broken down into a sequence of terms, separated by + or -
• Each term is broken down into a sequence of factors, separated by * or /
• Each factor is either a parenthesized expression or a number
• The syntax trees represent which operations should be carried out first

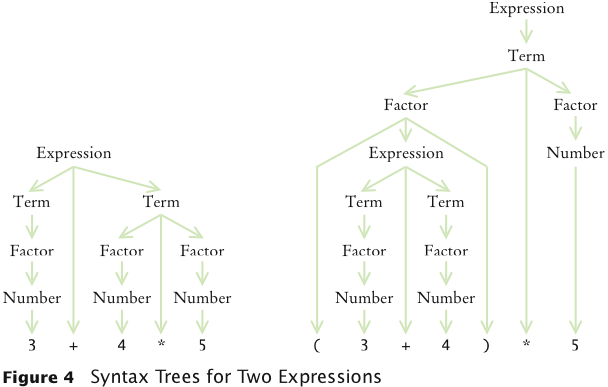

Syntax Tree for Two Expressions

Mutually Recursive Methods

• In a mutual recursion, a set of cooperating methods calls each other repeatedly
• To compute the value of an expression, implement 3 methods that call each other recursively:
  • getExpressionValue
  • getTermValue
  • getFactorValue

Lecture 9 Clicker Question 1

Why do we need both terms and factors?

1. Factors are combined by multiplicative operators (* and /), terms are combined by additive operators (+, -).
2. Terms are combined by multiplicative operators (* and /), factors are combined by additive operators (+, -).
3. We need both so that multiplication can bind more strongly than addition.
4. We need both so that we can have mutual recursion

The getExpressionValue Method

public int getExpressionValue()
{
   int value = getTermValue();
   boolean done = false;
   while (!done)
   {
      String next = tokenizer.peekToken();
      if ("+".equals(next) || "-".equals(next))
      {
         tokenizer.nextToken(); // Discard "+" or "-"
         int value2 = getTermValue();
         if ("+".equals(next)) value = value + value2;
         else value = value - value2;
      }
      else
      {
         done = true;
      }
   }
   return value;
}

The getTermValue Method

The getTermValue method calls getFactorValue in the same way, multiplying or dividing the factor values

public int getTermValue()
{
   int value = getFactorValue();
   boolean done = false;
   while (!done)
   {
      String next = tokenizer.peekToken();
      if ("*".equals(next) || "/".equals(next))
      {
         tokenizer.nextToken(); // Discard "*" or "/"
         int value2 = getFactorValue();
         if ("*".equals(next)) value = value * value2;
         else value = value / value2;
      }
      else
      {
         done = true;
      }
   }
   return value;
}

The getFactorValue Method

public int getFactorValue()
{
   int value;
   String next = tokenizer.peekToken();
   if ("(".equals(next))
   {
      tokenizer.nextToken(); // Discard "("
      value = getExpressionValue();
      tokenizer.nextToken(); // Discard ")"
   }
   else
   {
      value = Integer.parseInt(tokenizer.nextToken());
   }
   return value;
}

Lecture 9 Clicker Question 2

What happens if you try to parse the illegal expression 3+4*)5? Specifically, which method throws an exception?

1. getExpressionValue
2. getTermValue
3. getFactorValue
4. main

Using Mutual Recursions

To see the mutual recursion clearly, trace through the expression (3+4)*5:

• getExpressionValue calls getTermValue
  • getTermValue calls getFactorValue
    • getFactorValue consumes the ( input
    • getFactorValue calls getExpressionValue
      • getExpressionValue returns eventually with the value of 7, having consumed 3 + 4. This is the recursive call.
    • getFactorValue consumes the ) input
    • getFactorValue returns 7
  • getTermValue consumes the inputs * and 5 and returns 35
• getExpressionValue returns 35

Lecture 9 Clicker Question 3

Why does the expression parser use mutual recursion?

1. To compute the value of an arithmetic expression more efficiently than with a loop
2. To make * and / bind stronger than + and -
3. To handle both operators such as * and / and numbers such as 2 and 3
4. To handle parenthesized expressions, such as 2+3*(4+5)

Backtracking

• Build up partial solution
• Accept if it is an actual solution
• Check if it could continue being a solution
• If not, abandon it
• If so, extend it
• Extension can yield one or more partial solutions
• Pursue each of them recursively

Backtracking

Solve(partialSolution)
   Examine(partialSolution).
   If accepted
      Add partialSolution to the list of solutions.
   Else if continuing
      For each p in extend(partialSolution)
         Solve(p).

Eight Queens Problem

• Position eight queens on a chess board so that none of them attacks another
• There are no two queens on the same row, column, or diagonal
• Backtracking: Put a queen somewhere and keep going until it fails
• We know that there must be one queen on each row (why?)
• Put a queen on row 1, then one on row 2, ...

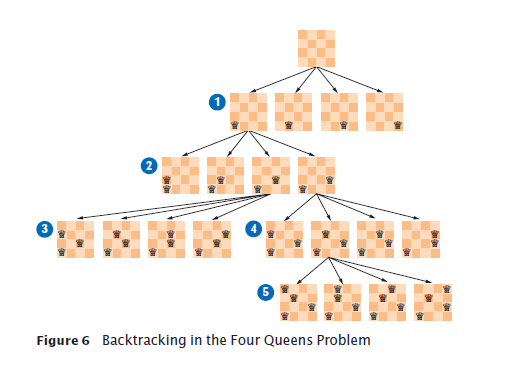

With Four Queens

Lecture 9 Clicker Question 4

How many solutions of the four queens problem are in the preceding figure?

1. 0
2. 1
3. 2
4. 3

Partial Solution

• Array of queens
• Partial solution is accepted if the queens don't attach each other
• Extending a partial solution: add another queen

• public class PartialSolution
  {
     private Queen[] queens;

     public int examine() { . . . }
     public PartialSolution[] extend() { . . . }
  }


Examining a Partial Solution

• Check whether two queens attack each other:

   public int examine()
    {
       for (int i = 0; i < queens.length; i++)
       {
          for (int j = i + 1; j < queens.length; j++)
          {
             if (queens[i].attacks(queens[j])) { return ABANDON; }
          }
       }
       if (queens.length == NQUEENS) { return ACCEPT; }
       else { return CONTINUE; }
    }

Extending a Partial Solution

• Make copies and add a queen in each column

  public PartialSolution[] extend()
  {
     // Generate a new solution for each column
     PartialSolution[] result = new PartialSolution[NQUEENS];
     for (int i = 0; i < result.length; i++)
     {
        int size = queens.length;

        // The new solution has one more row than this one
        result[i] = new PartialSolution(size + 1);

        // Copy this solution into the new one
        for (int j = 0; j < size; j++)
        {
           result[i].queens[j] = queens[j];
        }

        // Append the new queen into the ith column
        result[i].queens[size] = new Queen(size, i);
     }
     return result;
  }

Lecture 9 Clicker Question 5

Suppose it was ok for queens to be in the same diagonal. Modify this program to count (but not display) the number of possible solutions for 6 queens. What do you get?

1. 92
2. 720
3. 4320
4. Something else
