CS 46B - Lecture 24

Pre-class reading

• Section 17.3

Binary Search Trees

• Fast set implementation
• Motivated by binary search
• Binary search looks either in left or right interval, O(log n)
• BST property: For each node
  • The data values of all descendants to the left are less than the data value stored in the node, and all descendants to the right have greater data values.

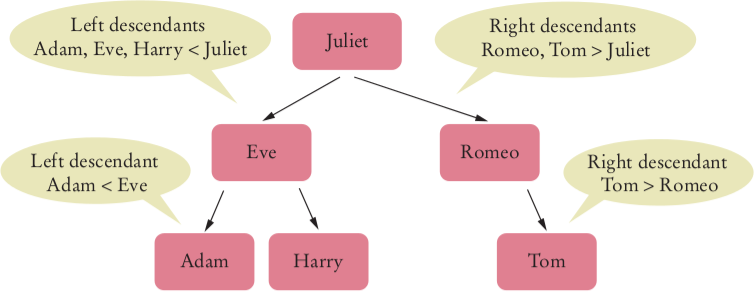

A Binary Search Tree

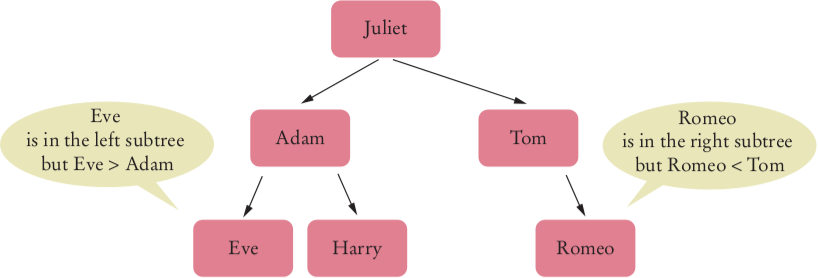

A Tree That is Not a BST

Insertion

• Recursive
• If subtree not empty, compare root data with data to be inserted
  • If data to be inserted is less, insert in left subtree
  • Otherwise insert in right subtree
• If subtree is empty, make root with given data
• Example

  BinarySearchTree tree = new BinarySearchTree();
  tree.add("Juliet");
  tree.add("Tom");
  tree.add("Diana");
  tree.add("Harry");

Lecture 24 Clicker Question 1

Which tree is the result of inserting F R E D into an empty binary search tree

1.    F
     / \
    D   R
     \
      E

2.    F
       \
        R
       /
      E
     /
    D

3.     F
      / \
     E   R
    /
   D

4. Something else

Implementation of Insertion

class Node
{
   . . .
   public void addNode(Node newNode)
   {
      int comp = newNode.data.compareTo(data);
      if (comp < 0)
      {
         if (left == null) { left = newNode; }
         else { left.addNode(newNode); }
      }
      else if (comp > 0)
      {
         if (right == null) { right = newNode; }
         else { right.addNode(newNode); }
      }
   }
   . . .
}

Finding an Element

• Does it equal the root element?
  • If so, congratulations—you found it
  • If not, go to the left subtree
  • Otherwise, go to the right subtree
• Just like binary search
• O(log n) provided the tree is balanced

Lecture 24 Clicker Question 2

Assume 1000 random integers were inserted into a BST. Approximately how many comparison are needed to find whether the integer 42 is among them?

1. 1000
2. 512
3. 10
4. 1

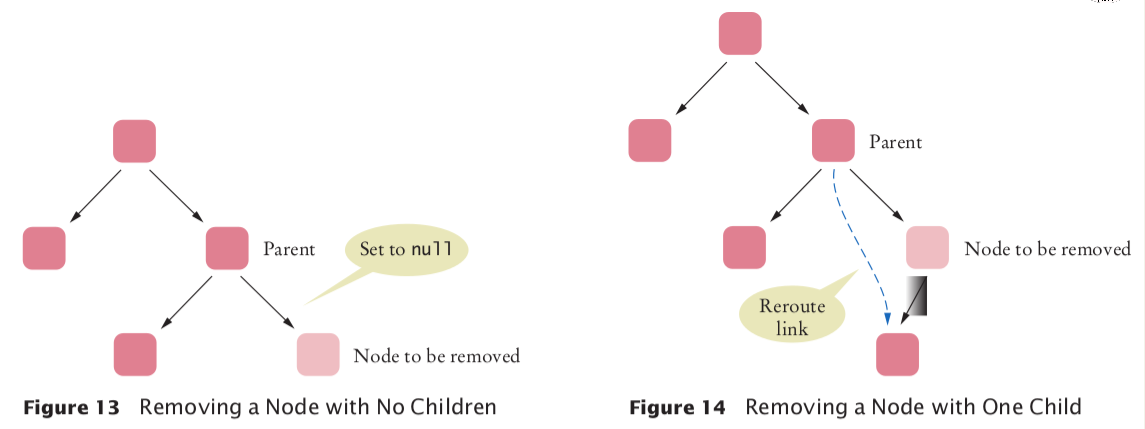

Removal

• Need to find the element to remove
• ...and its parent
• If the element to be removed is leaf, just remove it
• If the element to be removed has only one child, just use that.

Removal

• Hard part: Removing node with two children
• Find smallest child in right subtree
• That node has at most one child
• Remove it (see previous slide)
• Copy its value to the node to be removed

Lecture 24 Clicker Question 3

Consider this BST:

          C
         /  \
        A   G
           / \
          D   K

What is the result of removing C?

1.      G
       / \
      A   K
         /
        D

2.      A
         \
          G
         / \
        D   K

3.      D
       / \
      A   G
           \
            K

4. Someting else

Efficiency

• Assumption: Balanced tree
• Finding an element: O(log n)
• Adding an element
  • Follow path from root to leaf
  • Path length is O(log n)
• Removing an element
  • Finding node to be removed: O(log n)
  • Finding smallest child in right subtree: O(log n)
• Next semester: Can rebalance tree in guaranteed O(log n) time

Lecture 24 Clicker Question 4

You need to keep a set of lots of objects of class X. You don't care about traversal in sorted order, but you want maximum efficiency. What should you choose, and why?

1. A hash table because its add/remove/find operations are O(1)+
2. A re-balancing BST because its add/remove/find operations are guaranteed to be O(log n)
3. A hash table because it is easier to come up with a hashCode method for X than a compareTo method
4. A re-balancing BST because it is easier to come up with a compareTo method for X than a hashCode method
