CS 46B - Lecture 15

Cover page image

Pre-class reading

Sections 15.5-15.6

Stacks

Last-in first-out
Can only access top element
Operations push, pop, isEmpty

Queues

First-in first-out
Can only add to tail, remove from head
Operations add, remove, isEmpty

Working with Stacks

`Stack<Integer> s = new Stack<>();`	Constructs an empty stack.
`s.push(1); s.push(2); s.push(3);`	Adds to the top of the stack; `s` is now `[1, 2, 3]`. (Following the `toString` method of the `Stack` class, we show the top of the stack at the end.)
`int top = s.pop();`	Removes the top of the stack; `top` is set to 3 and `s` is now `[1, 2]`.
`head = s.peek();`	Gets the top of the stack without removing it; `head` is set to 2.
`boolean b = s.empty()`	Sets `b` to false. Same as `s.size() == 0`.

Working with Queues

`Queue<Integer> q = new LinkedList<>();`	The LinkedList class implements the Queue interface.
`q.add(1); q.add(2); q.add(3);`	Adds to the tail of the queue; `q` is now `[1, 2, 3]`
`int head = q.remove();`	Removes the head of the queue; `head` is set to 1 and `q` is `[2, 3]`
`head = q.peek();`	Gets the head of the queue without removing it; `head` is set to 2.
`boolean b = s.empty()`	Sets `b` to false. Same as `s.size() == 0`.

Priority Queues

Add elements in any order
Remove the most urgent one
Not a queue!

Working with Priority Queues

`PriorityQueue<Integer> q = new PriorityQueue<>();`	This priority queue holds Integer objects. In practice, you would use objects that describe tasks.
`q.add(3); q.add(1); q.add(2);`	Adds values to the priority queue.
`int first = q.remove(); int second = q.remove();`	Each call to remove removes the most urgent item: `first` is set to 1, `second` to 2.
`int next = q.peek();`

Lecture 15 Clicker Question 1

What does this code print?

Stack<Integer> s = new Stack<>();
Queue<Integer> q = new LinkedList<>();
PriorityQueue<Integer> p = new PriorityQueue<>();
s.push(1); s.push(3); s.push(2);
while (s.size() > 0) q.add(s.pop());
while (q.size() > 0) p.add(q.remove());
while (p.size() > 0) System.out.print(p.remove() + " ");

1 3 2
1 2 3
3 2 1
2 3 1

Application: Balancing Parentheses

Easy to check whether parentheses are balanced
Example: -(b * b - (4 * a * c ) ) / (2 * a)
Increment counter at (, decrement at )
Counter must be 0 at end and never < 0 in the middle
What if we have different kinds of parentheses?
–{ [b ⋅ b - (4 ⋅ a ⋅ c ) ] / (2 ⋅ a) }
Push them on a stack

Application: Balancing Parentheses

while more tokens
   t = next token
   if t is an opening parenthesis
      stk.push(t)
   else if t is a closing parenthesis
      if stk is empty
         return false // 1
      if t doesn't match stk.pop()
         return false // 2
return stk is empty // 3

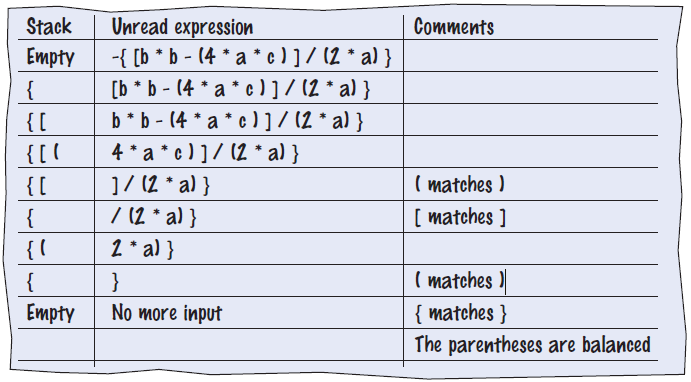

Application: Balancing Parentheses

Lecture 15 Clicker Question 2

For each of these three inputs, in which return statement does the algorithm return false?

–{ [b ⋅ b - (4 ⋅ a ⋅ c ) ] / (2 ⋅ a) } )
–{ { [b ⋅ b - (4 ⋅ a ⋅ c ) ] / (2 ⋅ a) }
–{ [b ⋅ b - (4 ⋅ a ⋅ c ) ] / (2 ⋅ a) ) }

1, 2, 3
1, 3, 2
2, 1, 3
Something else

Evaluating Reverse Polish Expressions

Infix operators need parentheses to specify what comes first: (3 + 4) * 5
Polish notation: Write operator before operands
* + 3 4 5
Invented by the Polish mathematician Jan Łukasiewicz
Reverse Polish: Write them after the operand
3 4 + 5 *

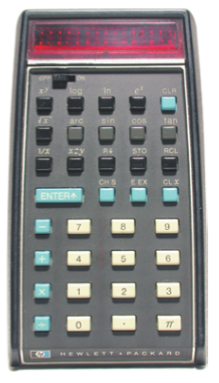

Used in classic pocket calculators and the Java virtual machine

Reverse Polish Notation

while more tokens
   t = next token
   if t is a number
      stk.push(t)
   else if t is an operand
      arg2 = stk.pop()
      arg1 = stk.pop()
      result = apply operand to arg1 and arg2...
      stk.push(result)
print(stk.pop())

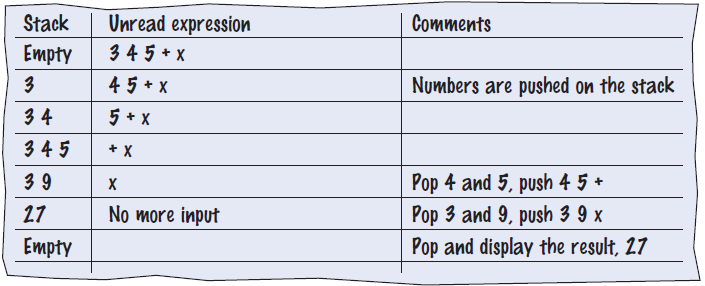

Reverse Polish Notation

Lecture 15 Clicker Question 3

What is the result of the Reverse Polish expression

2 1 3 + * 4 -

4
-4
7
None of the above

Lecture 15 Clicker Question 4

How do you write (3 + 4) x 5 + 6 in Reverse Polish?

3 4 5 x + 6 +
3 4 + 5 x 6 +
3 + 4 5 x + 6
None of the above

Evaluating Algebraic Expressions

Regular notation, not reverse polish
Push numbers on one stack, operators on another

Core step—evaluating the top:

Pop two numbers
Pop an operator
Apply operator to numbers
Push the result

Number stack	Operator stack	Unprocessed input	Comments
		3 + 4
3		+ 4
3	+	4
4 3	+	No more input	Evaluate the top
7			The result is 7

Operator Precedence

* has higher precedence than +
* and / have the same precedence

Don't push an operator if it has higher precedence than the top operator. Instead, evaluate the top.

Number stack	Operator stack	Unprocessed input	Comments
		3 * 4 + 5
3		* 4 + 5
3	*	4 + 5
4 3	*	+ 5	* has higher precedence Evaluate the top
12	+	5	Now push +
5 12	+	No more input	Evaluate the top
17			The result is 17

Parentheses

Push (

When encountering a ), evaluate the top until the ( reappears

Number stack	Operator stack	Unprocessed input	Comments
		3 * (4 + 5)
3		* (4 + 5)
3	*	(4 + 5)
	( *	4 + 5)
4 3	( *	+ 5)
4 3	+ ( *	5)
5 4 3	+ ( *	)
9 3	( *	No more input	Evaluate the top
9 3	*		Pop matching (
27			Evaluate the top—the result is 27

Complete Algorithm

while more tokens
   t = next token
   if t is a number
      nums.push(t)
   else if t == "("
      ops.push(t)
   else if t is an operator
      while ops.top() has a higher precedence than op
    		 Evaluate the top...
	    ops.push(t)
   else if t == ")"
      while ops.top() != "("
         Evaluate the top...
         ops.pop()
while top not empty
   Evaluate the top...

Backtracking

Escaping from a maze
Use a stack to remember all paths that still need to be tried
At an intersection, push all paths
Pop one and follow it
When a path is a dead end, pop the next one (that's the backtracking)
Repeat until exit
Can use a queue as well, but not as intuitive (you don't just go back to the last choice)

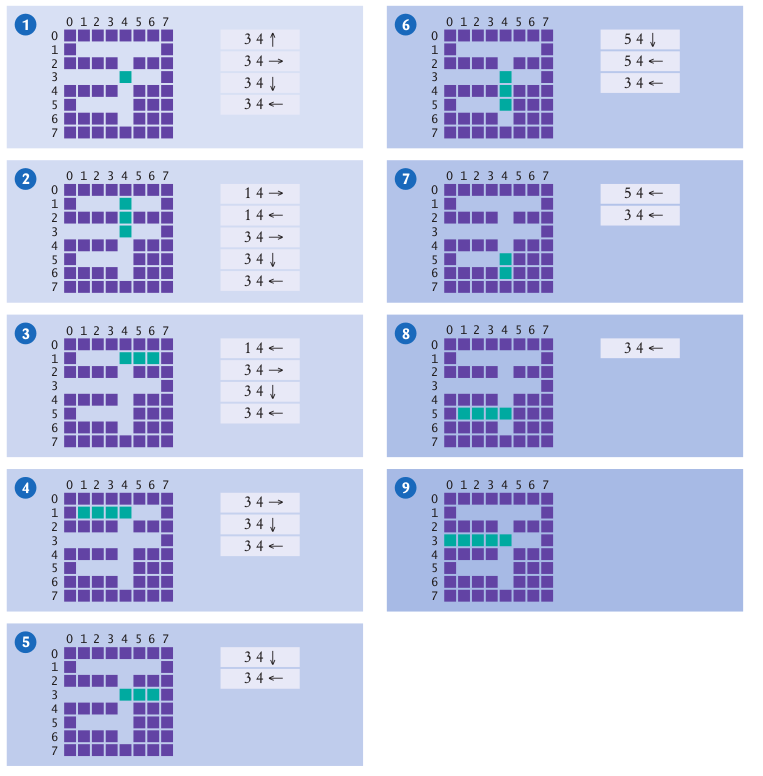

Maze Escape Example

Maze Escape Pseudocode

Push all paths from the point on which you are standing onto stk...
While stk not empty
	 p = stk.pop()
	 pos = follow p until you reach an exit, intersection, or dead end...
	 If pos is an exit
		 Congratulations!
	 Else if pos is an intersection
		 Push all paths meeting at the intersection, except for p, onto stk

Lecture 15 Clicker Question 5

Recursion haters rejoice: you can always turn a recursion into an algorithm that uses a stack or queue.

Remember the number puzzle? Here it is without recursion.

q.add(puzzle)
while q not empty
   p = q.remove()
   if p is solved
      add p to result
   else
      f = p.firstLetter()
      if f is not empty
         for i = 0 ... 9
            if p doesn't contain i
               pnew = p.replace(f, i)
               q.add(pnew)

Change the solution to Homework 5c into this algorithm.

What is the first solution that is displayed?

3665+8699=12364
7886+4899=12785
Something else
Nothing is displayed—I think I got into an infinite loop

Lecture 15 Clicker Question 6

In the preceding question, replace the queue with a stack.

Tip—you can leave the calls to add since push and add do the same thing.

Does it still work?

No way—you can't just change a queue into a stack
Yes, and the result is exactly the same
Yes, and the result is in reverse order
I got a stack overflow
