Observing Project Valhalla

☟ Download source code

About the Speaker

• Cay Horstmann
• Author of Core Java (14 editions since 1996), Java/JavaScript/Scala for the Impatient, etc.
• Java Champion
• https://horstmann.com

Values and References

• Ever since Java 1.0: Eight primitive types byte short int long float double boolean char
• Everything else is a reference type
• Primitive types are “flat”—no indirection
• And “dense”—no headers
• Performance benefits
  • Memory savings
  • Better locality
  • Less GC work
• What if we want more primitives, erm, values?
• E.g. currency, measures, date/time, short/long floats, points, complex, tuples
• “Codes like a class, acts like an int”

Value Classes

• JEP 401: Value class gives up identity
• Instance fields are final
• ==, hashCode derived from fields, not address
• No synchronized methods
• JVM may (but doesn’t have to) optimize layout/performance
• Many value classes will be records:

  public value record Point(double x, double y) {
     public Point moveBy(double dx, double dy) { return new Point(x + dx, y + dy); }
  }

• Abstract value class can be extended by value or identity classes
• First iteration of Project Valhalla

Building Valhalla

• No need to build for simple experiments—use the sandbox https://javaalmanac.io/jdk/valhalla/
• A recent build may be on https://jdk.java.net/valhalla/
• Easy to build on Linux:

  git clone https://github.com/openjdk/valhalla/
  cd valhalla
  bash configure

• Install any missing packages
• Run

  make images


• The JDK build is in valhalla/build/linux-x86_64-server-release/images/jdk
• If you use SDKMAN!

  sdk install java valhalla /path/to/valhalla/build/linux-x86_64-server-release/images/jdk


Running Valhalla

• value class syntax is supported in current Valhalla build
• Be sure to enable preview:

  javac --enable-preview --source 26 ...
  java --enable-preview ...
  jshell --enable-preview


• Easy thing to try: Brownian motion

  Point p = new Point(0, 0);
  for (int i = 0; i < ITERATIONS; i++)
      p = p.moveBy(Math.random() - 0.5, Math.random() - 0.5);
  IO.println(p);


• After 100_000_000 iterations:

  time java --enable-preview withvalhalla.Brownian
  Point[x=619.9117803091456, y=2227.141928668786]
  real    0m7.806s


• Timing without Valhalla: 0m8.178s
• So, what does Valhalla buy us?

Object Allocations

• Object header on 64-bit VM: 12 bytes
• Two doubles: 16 bytes
• 4 bytes padding for total of 32 bytes per Point heap object
• 100_000_000 points ≈ 2.98GiB
• Pre-Valhalla: Garbage collector is busy
• To see, run

  java --enable-preview -XX:StartFlightRecording=filename=novalhalla.jfr novalhalla.Brownian


• Load novalhalla.jfr into Java Mission Control
• Open Memory tab
• See allocations for 100_000_000 Point objects (close to 3GiB), busy GC
• Repeat with Valhalla version
• 24MiB allocated, no GC activity 😻

JIT Code Disassembly

• But why isn’t Valhalla faster?
• Let’s look at the generated code
• Download hsdis-amd64.so from https://www.chriswhocodes.com/hsdis/ into current directory, then

  export LD_LIBRARY_PATH=.
  java --enable-preview -XX:+UnlockDiagnosticVMOptions -XX:+PrintAssembly \
  -XX:+LogCompilation -XX:LogFile=novalhalla.log novalhalla.Brownian

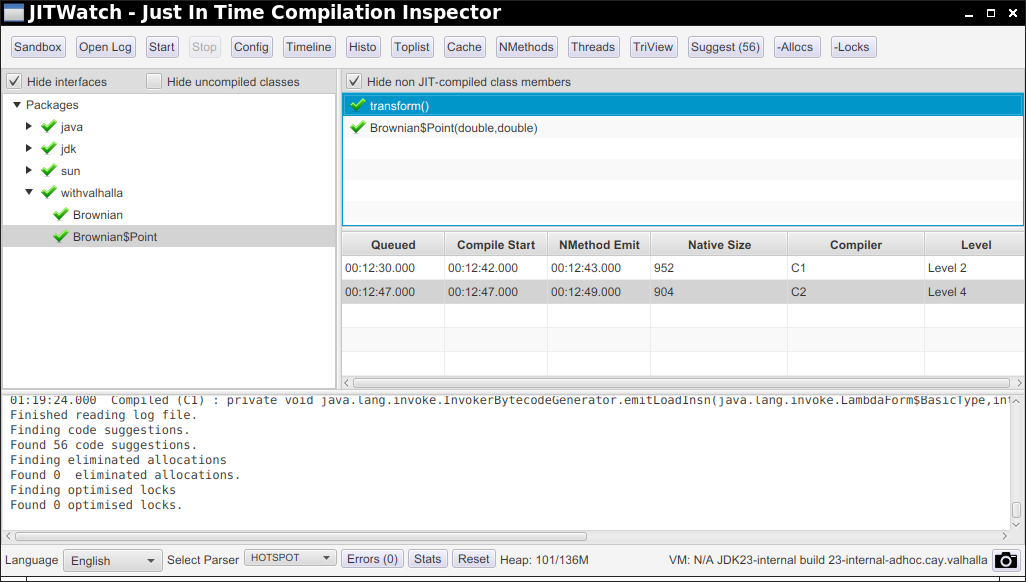

• View the logs with JITWatch

  export GDK_SCALE=2
  java --enable-preview -jar jitwatch-ui-1.4.9-shaded-linux-x64.jar


• Click Open Log, then Start

Hotspot

• javac generates bytecodes
• java interprets bytecodes...
• ...and compiles them into machine code
• Opcodes at https://shell-storm.org/x86doc/
• C1 compiler: simple optimizations, speeds up startup time
• C2 compiler: more complex optimizations for long-running programs
• “Hot” methods are compiled (i.e. frequently called—C1: 1,500, C2 10,000)
• “Hot” loops are compiled
• Methods may be inlined, loops unrolled
• In our case:
  • valhalla inlines call to Point.moveBy in Brownian.main, novalhalla doesn’t
  • But Math.random is much more expensive 😞

Benchmarking

• Use JMH (Java Microbenchmark Harness) for accurate timing, JVM warmup
• Make project with

  mvn archetype:generate \
    -DinteractiveMode=false \
    -DarchetypeGroupId=org.openjdk.jmh \
    -DarchetypeArtifactId=jmh-java-benchmark-archetype \
    -DgroupId=com.horstmann \
    -DartifactId=valhalla-benchmark \
    -Dversion=1.0


• In POM, set javac.target to 26 and add this inside configuration of maven-compiler-plugin:

  <compilerArgs>
     <arg>-verbose</arg>
     <arg>--enable-preview</arg>
     <arg>-proc:full</arg>
     <arg>--add-exports</arg>
     <arg>java.base/jdk.internal.vm.annotation=ALL-UNNAMED</arg>
  </compilerArgs>


• Compile and run:

  cd benchmark
  mvn clean install
  java --enable-preview -jar target/benchmarks.jar Benchmark1


Too Good to Be True?

• Instead of random movement, transform tweaks and swaps x and y:

  /* value */ record Point(double x, double y) {
      ...
      public Point transform() { return new Point(y + 1, 0.5 - x); }
  }

• Set p = p.transform() 10_000_000 times
• Amazing result 🤩

  Benchmark                         Mode  Cnt      Score      Error  Units
  c.h.novalhalla.Benchmark1.work    avgt   25  69213.839 ± 1526.112  us/op
  c.h.withvalhalla.Benchmark1.work  avgt   25      0.006 ±    0.001  us/op


• Valhalla is good, but can it be that good?

Fixing the Benchmark

• With Valhalla, inlined call to transform unrolls loop
• And Hotspot notices that p.transform().transform().transform().transform() equals p!
• Exercise: Watch JIT
• Remedy: More complex transform
• If using random numbers, precompute them

  Benchmark                         Mode  Cnt      Score      Error  Units
  c.h.novalhalla.Benchmark2.work    avgt   25  47725.264 ± 6597.810  us/op
  c.h.withvalhalla.Benchmark2.work  avgt   25  24847.389 ± 3120.296  us/op



• Solid result: Value type are performant 👍
• And remember the lower memory footprint! 😻

Null-Restricted Types

• Value type variables can be null:

  Point target = null // Ok;


• Flattened layout needs a bit for nullness
• If never null, escape analysis can often optimize locally
• But not inside objects, arrays
• Null-restricted type: Value class type that can’t be null:

  Point! origin = new Point(0, 0); // Syntax may change


• Compiler forbids null assignment:

  origin = null; // Compile-time error


• Also run-time check:

  Point![] path = ...;
  Object[] objs = path;
  objs[0] = null; // NullPointerException


• Will come to all types, not just value types: https://openjdk.org/jeps/8303099

Strict Initialization

• Local variables are always explicitly initialized (definite assignment)
• What about non-null fields, array elements?
• Primitives initialized with zero bits
• Not appropriate for all values, ex. LocalDate!
• Null-restricted fields must be strictly initialized (https://openjdk.org/jeps/8350458)
• Instance field: In constructor before call to super(...), or with initializer expression, or assigned in object initializer
• Static field: With initializer expression, or assigned in static initializer
• Array element: Provide initial value

  String![] labels;
  labels = new String![]{ "x", "y", "z" };
  labels = new String![100]{ "" }; // strawman syntax
  labels = new String![100]{ i -> "x"+i }; // strawman syntax


• The default value (zero bits) can never be observed!
• With JEP 482, field assignment before super possible for arbitrary classes

Trying Phase 2 Features

• Current Valhalla build supports phase 1 syntax (value modifier)
• Non-null ! will come in phase 2
• Need annotations in jdk.internal.vm.annotation package for phase 2 features
• @NullRestricted on a field (instead of !)
• @Strict on a field that is strictly initialized
• @LooselyConsistentValue to allow tearing
• jdk.internal.value.ValueClass lets you construct null-restricted arrays
• Examples at https://github.com/openjdk/valhalla/blob/lworld/test/jdk/valhalla/valuetypes/
• To access internals:

  javac --add-exports java.base/jdk.internal.vm.annotation=ALL-UNNAMED \
    --add-exports java.base/jdk.internal.value=ALL-UNNAMED ...
  java --add-exports java.base/jdk.internal.value=ALL-UNNAMED ...


Atomic Updates

• References, primitive types ≤ 32 bits are updated atomically
• Longer values may tear
• A thread may read/write half-updated value
• Tearing more likely for longer flattened values
• Must opt in to allow tearing: (Syntax may change)

  value record Point(double x, double y)
     implements LooselyConsistentValue {}




• Then users of the class are on the hook: thread confinement, volatile, locks
• Observing tearing:

  time java --add-exports java.base/jdk.internal.value=ALL-UNNAMED --enable-preview  withtearing.Main
  Point[x=7.0, y=6.0]
  Point[x=13.0, y=14.0]
  ...
  real    0m0.367s

  time java --add-exports java.base/jdk.internal.value=ALL-UNNAMED --enable-preview notearing.Main
  real    0m27.675s


Memory Consumption

• Sleep after allocating value objects/arrays:

  Point[] path = (Point[]) ValueClass.newNullRestrictedNonAtomicArray(Point.class, NPOINTS, new Point(0, 0));
  for (int i = 1; i < path.length; i++) {
     path[i] = path[i - 1].transform();
  }
  IO.println(path[path.length - 1]);
  Thread.sleep(60_000);


Value type must have single field or be loosely consistent

• Observing flattening:

  javac --add-exports java.base/jdk.internal.vm.annotation=ALL-UNNAMED \
      --add-exports java.base/jdk.internal.value=ALL-UNNAMED --enable-preview --source 26 \
      withflattening/Points.java
  java --add-exports java.base/jdk.internal.value=ALL-UNNAMED --enable-preview withflattening.Points


  Run jcmd:

  jcmd withflattening.Points GC.class_histogram | head


• Flattened array with 200_000_000 double 🎉

  num     #instances         #bytes  class name (module)
  -------------------------------------------------------
     1:             1     1600000016  [Lwithflattening.Point;


• Without flattening:

   num     #instances         #bytes  class name (module)
  -------------------------------------------------------
     1:     100000000     3200000000  noflattening.Point
     2:             1      400000016  [Lwithvalhalla.Point;


What You’ll Get

• value modifier
• ! syntax
• Marker interface for “ok if it tears”
• Standard library classes considered as value classes even though not so declared:
  • Wrappers Integer, Double, etc.
  • Optional, OptionalInt, etc.
  • java.time classes LocalDate, Instant, etc.
• That’s it.
• “Virtuous collapse” after so many things were tried
• May open the door for more progress: deconstruction, templates, ...
• Next can of worms: generics

Generics

• Should ArrayList<int> use int or Object bytecodes?
• Array creation for int[] or Integer![] is different than for Object[]
• Is List<int> a subtype of the raw List or wildcard List<?> type?
• Constraining to value types? (Optional<T!>)
• get method of Map<String, int> can’t return null
• Overloading:

  static <T extends Comparable<? super T>> void sort(T[] a)
  static void sort(int[] a)


• Universal generics first, then specialized generics

History Notes

• Valhalla was born July 10, 2014
• Surface syntax has changed many times, e.g. inline classes
• There used to be different bytecodes for references L and values Q—no more
• There used to be special bytecodes withfield and defaultvalue—no more
• There used to be “implicit constructors” to agree to zero default—no more
• Expect more twists and turns with generics

Further Reading

• https://openjdk.org/projects/valhalla/
• https://openjdk.org/jeps/0
• JEP 401: Value Classes and Objects (Preview)
• JEP 402: Enhanced Primitive Boxing (Preview)
• JEP/Issue 8316779: Null-Restricted Value Class Types (Preview), with more info in Issue 8317765
• JEP 8350458 Strict Field Initialization in the JVM (Preview)
• JEP 218: Generics over Primitive Types ← created 2014-06-06!
• JEP 169: Larval State for Value Objects ← created 2012-10-22!
• JEP/Issue 8261529 (closed): Universal Generics
• https://github.com/forax/intellij-conf-2025
• https://www.youtube.com/watch?v=NF4CpL_EWFI

Conclusion

• After more than ten years of prototyping, value types will come to a JVM near you real soon now
• Some workloads will see significant performance improvements
• Primitive types will be approximated by null-restricted wrappers
• Conversion/overloading rules will get (even more) complex, but most programmers won’t need to care
• Generics? Still a way to go before List<int> is backed by an int[]
• When value types come, benchmark to see if they are for you
• Questions?
