Object-Oriented Design & Patterns

Cay S. Horstmann

Chapter 10 More Design Patterns

Slide navigation: Forward with space bar, → arrow key, or PgDn. Backwards with ← or PgUp.

Chapter Topics

The ADAPTER Pattern
Actions and the COMMAND Pattern
The FACTORY METHOD Pattern
The PROXY Pattern
The SINGLETON Pattern
The VISITOR Pattern
Other Design Patterns

Adapters

Cable adapter: adapts plug to foreign wall outlet
OO Programming; Want to adapt class to foreign interface type
Example: Add CarIcon to container
Problem: Containers take components, not icons
Solution: Create an adapter that adapts Icon to Component
Ch10/adapter/IconAdapter.java
Ch10/adapter/IconAdapterTester.java

The ADAPTER Pattern

Context

You want to use an existing class (adaptee) without modifying it.
The context in which you want to use the class requires target interface that is different from that of the adaptee.
The target interface and the adaptee interface are conceptually related.

The ADAPTER Pattern

Solution

Define an adapter class that implements the target interface.
The adapter class holds a reference to the adaptee. It translates target methods to adaptee methods.
The client wraps the adaptee into an adapter class object.

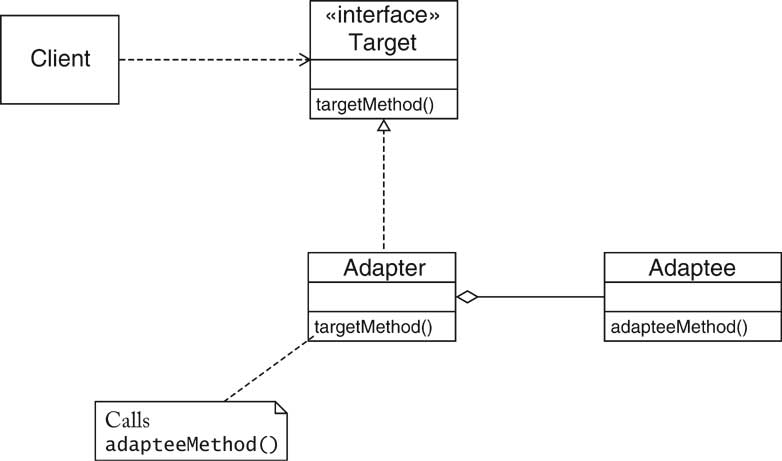

The ADAPTER Pattern

The ADAPTER Pattern

Name in Design Pattern	Actual Name (Icon->Component)
Adaptee	Icon
Target	JComponent
Adapter	IconAdapter
Client	The class that wants to add icons into a container
targetMethod()	paintComponent(), getPreferredSize()
adapteeMethod()	paintIcon(), getIconWidth(), getIconHeight()

The ADAPTER Pattern

In stream library
Input streams read bytes
Readers read characters
Non-ASCII encoding: multiple bytes per char
System.in is a stream
What if you want to read characters?
Adapt stream to reader
InputStreamReader

The ADAPTER Pattern

Name in Design Pattern	Actual Name (Stream->Reader)
Adaptee	InputStream
Target	Reader
Adapter	InputStreamReader
Client	The class that wants to read text from an input stream
targetMethod()	read (reading a character)
adapteeMethod()	read (reading a byte)

User Interface Actions

Multiple routes to the same action
Example: Cut a block of text
- Select Edit->Cut from menu
- Click toolbar button
- Hit Ctrl+X
Action can be disabled (if nothing is selected)
Action has state
Action should be an object

User Interface Actions

The `Action` Interface Type

Extends ActionListener
Can be enabled/disabled
Additional state, including
- Action name
- Icon
helloAction.putValue(Action.NAME, "Hello");
menu.add(helloAction);
Extend AbstractAction convenience class

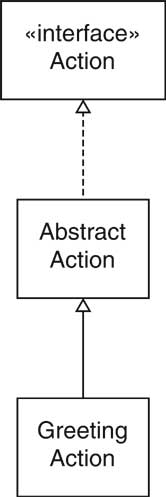

The `Action` Interface Type

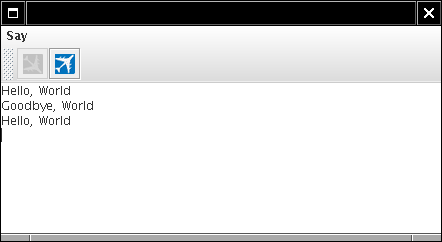

Action Example

The COMMAND Pattern

Context

You want to implement commands that behave like objects
- because you need to store additional information with commands
- because you want to collect commands.

The COMMAND Pattern

Solution

Define a command interface type with a method to execute the command.
Supply methods in the command interface type to manipulate the state of command objects.
Each concrete command class implements the command interface type.
To invoke the command, call the execute method.

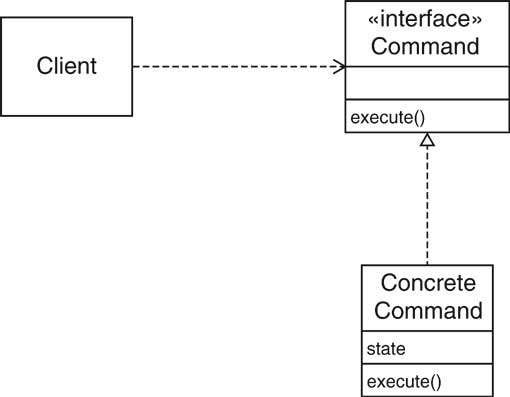

The COMMAND Pattern

The COMMAND Pattern

Name in Design Pattern	Actual Name (Swing actions)
Command	`Action`
ConcreteCommand	subclass of `AbstractAction`
execute()	`actionPerformed()`
state	`name` and `icon`

Factory Methods

Every collection can produce an iterator
Iterator iter = list.iterator()
Why not use constructors?
Iterator iter = new LinkedListIterator(list);
Drawback: not generic
Collection coll = ...;
Iterator iter = new ???(coll);
Factory method works for all collections
Iterator iter = coll.iterator();
Polymorphism!

The FACTORY METHOD Pattern

Context

A type (the creator) creates objects of another type (the product).
Subclasses of the creator type need to create different kinds of product objects.
Clients do not need to know the exact type of product objects.

The FACTORY METHOD Pattern

Solution

Define a creator type that expresses the commonality of all creators.
Define a product type that expresses the commonality of all products.
Define a method, called the factory method, in the creator type.
The factory method yields a product object.
Each concrete creator class implements the factory method so that it returns an object of a concrete product class.

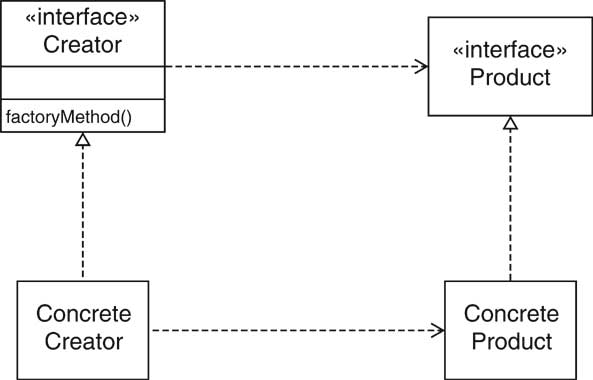

The FACTORY METHOD Pattern

The FACTORY METHOD Pattern

Name in Design Pattern	Actual Name (iterator)
Creator	Collection
ConcreteCreator	A subclass of `Collection`
factoryMethod()	iterator()
Product	Iterator
ConcreteProduct	A subclass of `Iterator` (which is often anonymous)

Not a FACTORY METHOD

Not all "factory-like" methods are instances of this pattern
Create DateFormat instances
DateFormat formatter = DateFormat.getDateInstance();
Date now = new Date();
String formattedDate = formatter.format(now);
getDateInstance is a static method
No polymorphic creation

Proxies

Proxy: a person who is authorized to act on another person s behalf
Example: Delay instantiation of object
Expensive to load image
Not necessary to load image that user doesn't look at
Proxy defers loading until user clicks on tab

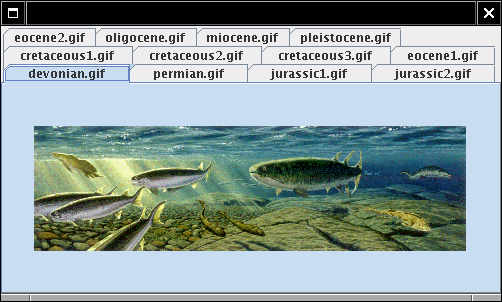

Deferred Image Loading

Deferred Image Loading

Normally, programmer uses image for label:
JLabel label = new JLabel(new ImageIcon(imageName));
Use proxy instead:
JLabel label = new JLabel(new ImageProxy(imageName));
paintIcon loads image if not previously loaded
public void paintIcon(Component c, Graphics g, int x, int y)
{
if (image == null) image = new ImageIcon(name);
image.paintIcon(c, g, x, y);
}

Proxies

Ch10/proxy/ImageProxy.java
Ch10/proxy/ProxyTester.java
"Every problem in computer science can be solved by an additional level of indirection"
Another use for proxies: remote method invocation

The PROXY Pattern

Context

A class (the real subject) provides a service that is specified by an interface type (the subject type)
There is a need to modify the service in order to make it more versatile.
Neither the client nor the real subject should be affected by the modification.

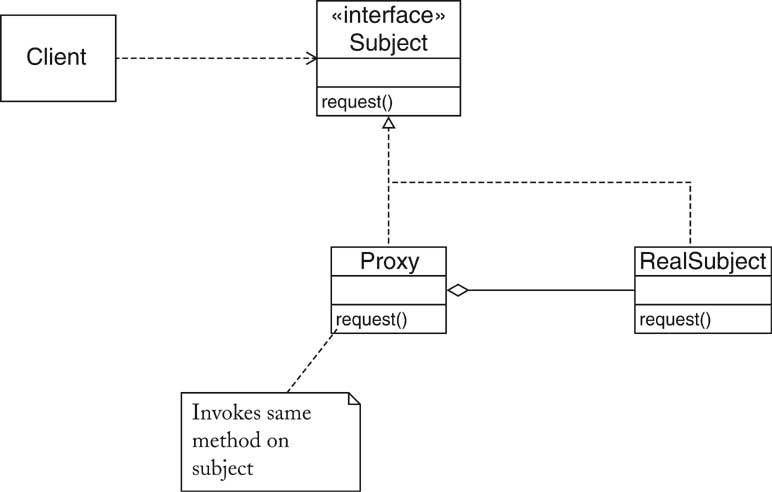

The PROXY Pattern

Solution

Define a proxy class that implements the subject interface type.
The proxy holds a reference to the real subject, or otherwise knows how to locate it.
The client uses a proxy object.
Each proxy method invokes the same method on the real subject and provides the necessary modifications.

The PROXY Pattern

The PROXY Pattern

Name in Design Pattern	Actual Name (image proxy)
Subject	Icon
RealSubject	ImageIcon
Proxy	ImageProxy
request()	The methods of the `Icon` interface type
Client	JLabel

Singletons

"Random" number generator generates predictable stream of numbers
Example: seed = (seed * 25214903917 + 11) % 2⁴⁸
Convenient for debugging: can reproduce number sequence
Only if all clients use the same random number generator
Singleton class = class with one instance

Random Number Generator Singleton

public class SingleRandom
{
   private SingleRandom() { generator = new Random(); }
   public void setSeed(int seed) { generator.setSeed(seed); }
   public int nextInt() { return generator.nextInt(); }
   public static SingleRandom getInstance() { return instance; }
   private Random generator;
   private static SingleRandom instance = new SingleRandom();
}

The SINGLETON Pattern

Context

All clients need to access a single shared instance of a class.
You want to ensure that no additional instances can be created accidentally.

The SINGLETON Pattern

Solution

Define a class with a private constructor.
The class constructs a single instance of itself.
Supply a static method that returns a reference to the single instance.

Not a SINGLETON

Toolkit used for determining screen size, other window system parameters
Toolkit class returns default toolkit
Toolkit kit = Toolkit.getDefaultToolkit();
Not a singleton--can get other instances of Toolkit
Math class not example of singleton pattern
No objects of class Math are created

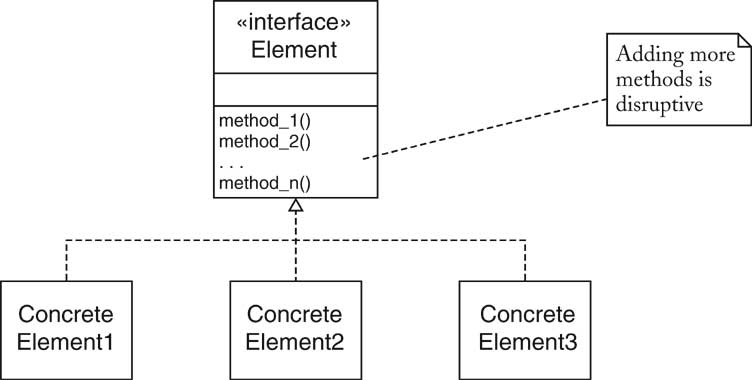

Inflexible Hierarchies

How can one add operations to compound hierarchies?
Example: AWT Component, Container, etc. form hierarchy
Lots of operations: getPreferredSize,repaint
Can't add new methods without modifying Component class
VISITOR pattern solves this problem
Each class must support one method
void accept(Visitor v)

Inflexible Hierarchies

Visitors

Visitor is an interface type
Supply a separate class for each new operation
Most basic form of accept method:
public void accept(Visitor v) { v.visit(this); }
Programmer must implement visit

Visitors

Problem: Operation may be different for different element types
Can't rely on polymorphism
Polymorphism assumes fixed set of methods, defined in superclass
Trick: Can use variable set of methods if set of classes is fixed
Supply separate visitor methods:
public interface Visitor
{
   void visitElementType1(ElementType1 element);
   void visitElementType2(ElementType2 element);
   ...
   void visitElementTypen(ElementTypen element);
}

Visitors

Example: Directory tree
Two kinds of elements: DirectoryNode,FileNode
Two methods in visitor interface type:
void visitDirectoryNode(DirectoryNode node)
void visitFileNode(FileNode node)

Double Dispatch

Each element type provides methods:
public class ElementType_i
{
public void accept(Visitor v) { v.visitElementType_i(this); }
...
}
Completely mechanical
Example:
public class DirectoryNode
{
public void accept(Visitor v) { v.visitDirectoryNode(this); }
...
}

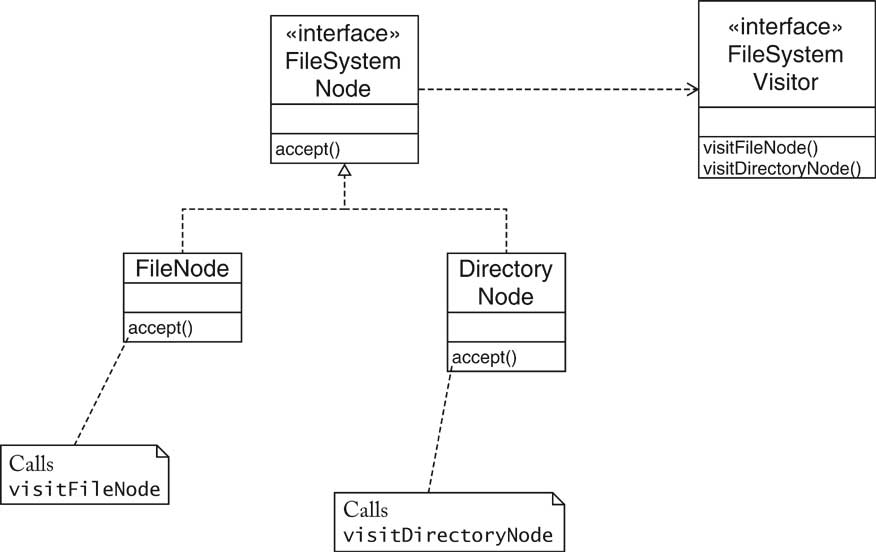

Visitor Example

Standard File class denotes both files and directories
Improved design: FileNode,DirectoryNode
Common interface type: FileSystemNode
Accepts FileSystemVisitor
Visitor methods:
visitFileNode
visitDirectoryNode

Visitor Example

Visitor Example

Actual visitor: PrintVisitor
Prints names of files (in visitFileNode)
Lists contents of directories (in visitDirectoryNode)
Maintains indentation level
..
   command
     CommandTester.java
     GreetingAction.java
   visitor
     FileNode.java
      DirectoryNode.java

Visitor Example

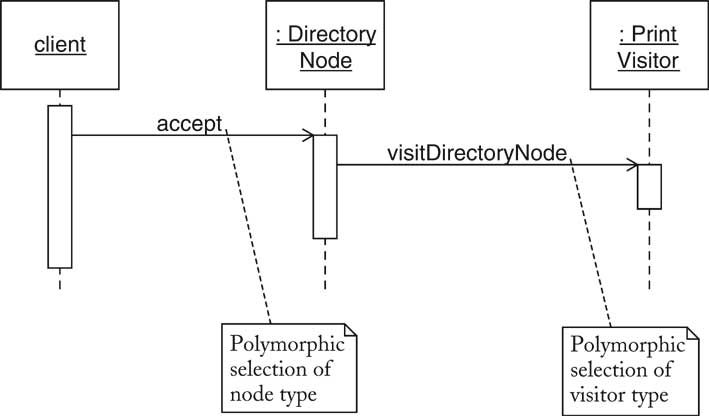

Double Dispatch Example

DirectoryNode node = new DirectoryNode(new File("..")); node.accept(new PrintVisitor());
node is a DirectoryNode
Polymorphism: node.accept calls DirectoryNode.accept
That method calls v.visitDirectoryNode
v is a PrintVisitor
Polymorphism: calls PrintVisitor.visitDirectoryNode
Two polymorphic calls determine
- node type
- visitor type

Double Dispatch Example

The VISITOR Pattern

Context

An object structure contains element classes of multiple types, and you want to carry out operations that depend on the object types.
The set of operations should be extensible over time.
The set of element classes is fixed.

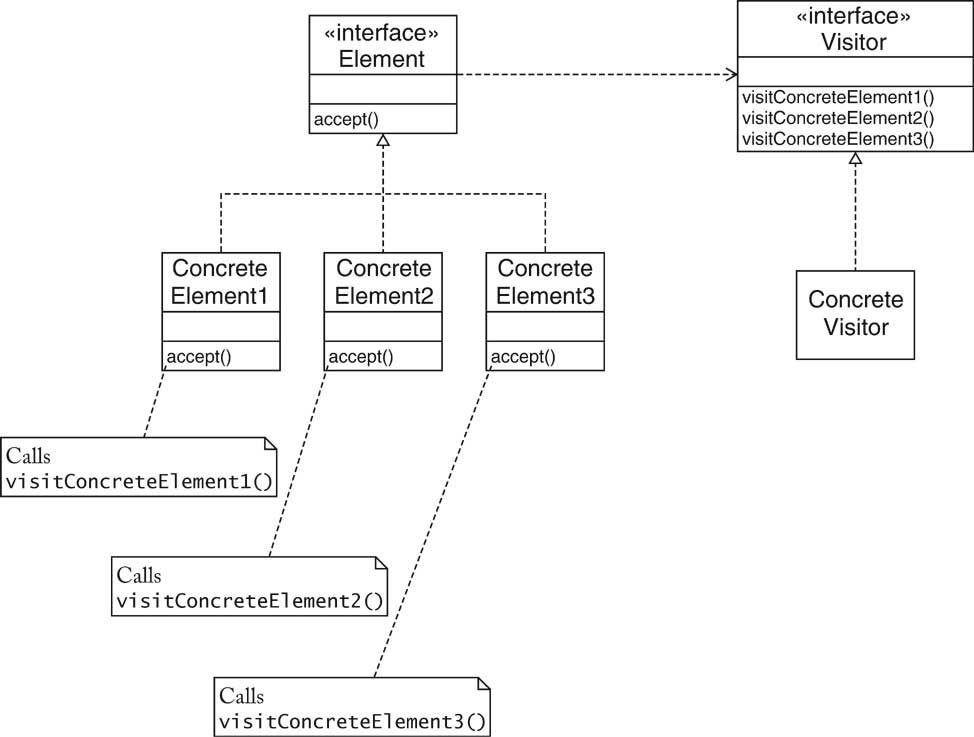

The VISITOR Pattern

Solution

Define a visitor interface type that has methods for visiting elements of each of the given types.
Each element class defines an accept method that invokes the matching element visitation method on the visitor parameter.
To implement an operation, define a class that implements the visitor interface type and supplies the operation s action for each element type.

The VISITOR Pattern

The VISITOR Pattern

Name in Design Pattern	Actual Name (file system visitor)
Element	FileSystemNode
ConcreteElement	FileNode, DirectoryNode
Visitor	FileSystemVisitor
ConcreteVisitor	`PrintVisitor`

Other Design Patterns

Abstract Factory
Bridge
Builder
Chain of Responsibility
Flyweight
Interpreter
Mediator
Memento
State

Conclusion: What You Learned

Object-oriented design
The design methodology
CRC cards and UML diagrams
Design patterns
Advanced Java
Interface types, polymorphism, and inheritance
Inner classes
Reflection
Multithreading
Collections
User interface programming
Building Swing applications
Event handling
Graphics programming

Object-Oriented Design & Patterns

Cay S. Horstmann

Chapter 10

More Design Patterns

Chapter Topics

Adapters

The ADAPTER Pattern

Context

The ADAPTER Pattern

Solution

The ADAPTER Pattern

The ADAPTER Pattern

The ADAPTER Pattern

The ADAPTER Pattern

User Interface Actions

User Interface Actions

The Action Interface Type

The Action Interface Type

Action Example

The COMMAND Pattern

Context

The COMMAND Pattern

Solution

The COMMAND Pattern

The COMMAND Pattern

Factory Methods

The FACTORY METHOD Pattern

Context

The FACTORY METHOD Pattern

Solution

The FACTORY METHOD Pattern

The FACTORY METHOD Pattern

Not a FACTORY METHOD

Proxies

Deferred Image Loading

Deferred Image Loading

Proxies

The PROXY Pattern

Context

The PROXY Pattern

Solution

The PROXY Pattern

The PROXY Pattern

Singletons

Random Number Generator Singleton

The SINGLETON Pattern

Context

The SINGLETON Pattern

Solution

Not a SINGLETON

Inflexible Hierarchies

Inflexible Hierarchies

Visitors

Visitors

Visitors

Double Dispatch

Visitor Example

Visitor Example

Visitor Example

Visitor Example

Double Dispatch Example

Double Dispatch Example

The VISITOR Pattern

Context

The VISITOR Pattern

Solution

The VISITOR Pattern

The VISITOR Pattern

Other Design Patterns

Conclusion: What You Learned

The `Action` Interface Type

The `Action` Interface Type
