CS 46A - Lecture 12

Cover page image

Pre-class reading

Sections 5.3 - 5.4

Multiple Alternatives: Sequences of Comparisons

if (condition)
   statement;
else if (condition)
   statement;
   . . .
else
   statement;

The first matching condition is executed

Order matters:

if (richter >= 0) // always passes
   r = "Generally not felt by people";
else if (richter >= 3.5) // not tested
   r = "Felt by many people, no destruction";
 . . .

Don't omit else:

if (richter >= 8.0)
   r = "Most structures fall";
if (richter >= 7.0) // omitted else--ERROR
   r = "Many buildings destroyed"

ch05/quake/Earthquake.java

/**
   A class that describes the effects of an earthquake.
*/
public class Earthquake
{
   private double richter;

   /**
      Constructs an Earthquake object.
      @param magnitude the magnitude on the Richter scale
   */
   public Earthquake(double magnitude)
   {
      richter = magnitude;
   }

   /**
      Gets a description of the effect of the earthquake.
      @return the description of the effect
   */
   public String getDescription()
   {
      String r;
      if (richter >= 8.0)
         r = "Most structures fall";
      else if (richter >= 7.0)
         r = "Many buildings destroyed";
      else if (richter >= 6.0)
         r = "Many buildings considerably damaged, some collapse";
      else if (richter >= 4.5)
         r = "Damage to poorly constructed buildings";
      else if (richter >= 3.5)
         r = "Felt by many people, no destruction";
      else if (richter >= 0)
         r = "Generally not felt by people";
      else
         r = "Negative numbers are not valid";
      return r;
   }
}

ch05/quake/EarthquakeRunner.java

import java.util.Scanner;

/**
   This program prints a description of an earthquake of a given magnitude.
*/
public class EarthquakeRunner
{
   public static void main(String[] args)
   {
      Scanner in = new Scanner(System.in);

      System.out.print("Enter a magnitude on the Richter scale: ");
      double magnitude = in.nextDouble();
      Earthquake quake = new Earthquake(magnitude);
      System.out.println(quake.getDescription());
   }
}

Program Run:

Enter a magnitude on the Richter scale: 7.1
Many buildings destroyed

Lecture 12 Clicker Question 1

The if/else/else statement for the earthquake strength first tested for higher values, then descended to lower values. Can you reverse that order?

No; if you do, the answer is always "Most structures fall"
No; if you do, the answer is always "Negative numbers are not valid"
Yes, you can reverse the order
Yes, if you also reverse the comparisons (changing >= to <)

Multiple Alternatives: Nested Branches

Branch inside another branch:

if (condition)
{
   if (condition)
      statement;
   else
      statement;
}
else
   statement;

Tax Schedule

If your filing status is Single		If your filing status is Married
Tax Bracket	Percentage	Tax Bracket	Percentage
$0 . . . $32,000	10%	$0 . . . $64,000	10%
Amount over $32,000	25%	Amount over $64,000	25%

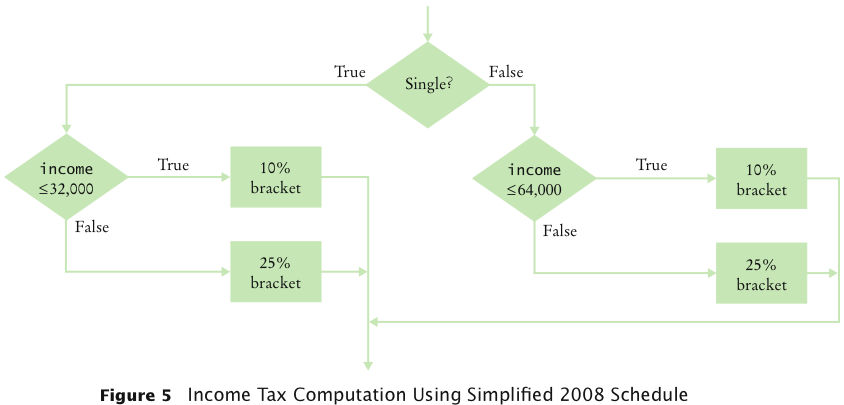

Nested Branches

Compute taxes due, given filing status and income figure:
1. Branch on the filing status
2. For each filing status, branch on income level
The two-level decision process is reflected in two levels of if statements
We say that the income test is nested inside the test for filing status

ch05/tax/TaxReturn.java

/**
   A tax return of a taxpayer in 2008.
*/
public class TaxReturn
{
   public static final int SINGLE = 1;
   public static final int MARRIED = 2;

   private static final double RATE1 = 0.10;
   private static final double RATE2 = 0.25;
   private static final double RATE1_SINGLE_LIMIT = 32000;
   private static final double RATE1_MARRIED_LIMIT = 64000;

   private double income;
   private int status;

   /**
      Constructs a TaxReturn object for a given income and
      marital status.
      @param anIncome the taxpayer income
      @param aStatus either SINGLE or MARRIED
   */
   public TaxReturn(double anIncome, int aStatus)
   {
      income = anIncome;
      status = aStatus;
   }

   public double getTax()
   {
      double tax1 = 0;
      double tax2 = 0;

      if (status == SINGLE)
      {
         if (income <= RATE1_SINGLE_LIMIT)
         {
            tax1 = RATE1 * income;
         }
         else
         {
            tax1 = RATE1 * RATE1_SINGLE_LIMIT;
            tax2 = RATE2 * (income - RATE1_SINGLE_LIMIT);
         }
      }
      else
      {
         if (income <= RATE1_MARRIED_LIMIT)
         {
            tax1 = RATE1 * income;
         }
         else
         {
            tax1 = RATE1 * RATE1_MARRIED_LIMIT;
            tax2 = RATE2 * (income - RATE1_MARRIED_LIMIT);
         }
      }

      return tax1 + tax2;
   }
}

ch05/tax/TaxCalculator.java

import java.util.Scanner;

/**
   This program calculates a simple tax return.
*/
public class TaxCalculator
{
   public static void main(String[] args)
   {
      Scanner in = new Scanner(System.in);

      System.out.print("Please enter your income: ");
      double income = in.nextDouble();

      System.out.print("Are you married? (Y/N) ");
      String input = in.next();
      int status;
      if (input.equalsIgnoreCase("Y"))
         status = TaxReturn.MARRIED;
      else
         status = TaxReturn.SINGLE;

      TaxReturn aTaxReturn = new TaxReturn(income, status);

      System.out.println("Tax: "
            + aTaxReturn.getTax());
   }
}

Program Run:

Please enter your income: 50000
Are you married? (Y/N) N
Tax: 11211.5

Lecture 12 Clicker Question 2

Some people object to higher tax rates for higher incomes, claiming that you might end up with less money after taxes when you get a raise for working hard. Let's add a 90% tax rate for income over $400,000. (This was actually in force during the Eisenhower administration.)

Suppose you make $399,900. Your taxes are $95,175. You are offered a $200 raise. By how much does it increase your taxes?

By a little more than $360,000
By a little more than $265,000
By a little more than $200
By a little more than $100

Using Boolean Expressions: The `boolean` Type

George Boole (1815-1864): pioneer in the study of logic
value of expression amount < 1000 is true or false
boolean type: one of true or false

Using Boolean Expressions: Predicate Method

A predicate method returns a boolean value:

public boolean isOverdrawn()
{
   return balance < 0; // Returns true or false
}

Use in conditions:
```
if (harrysChecking.isOverdrawn())
```
Useful predicate methods in Character class:
```
isDigit
isLetter
isUpperCase
isLowerCase
```
```
if (Character.isUpperCase(ch)) . . .
```
Useful predicate methods in Scanner class: hasNextInt() and hasNextDouble():
```
if (in.hasNextInt()) n = in.nextInt();
```

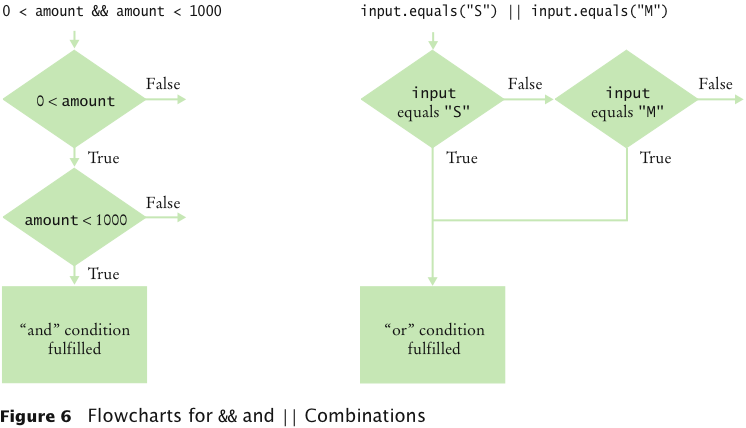

Using Boolean Expressions: The Boolean Operators

&& and
|| or
! not
```
if (0 < amount && amount < 1000) . . .
```

if (input.equals("S") || input.equals("M")) . . .

```
if (!input.equals("S")) . . .
```

`&&` and `||` Operators

Boolean Operators

Truth Tables

A	B	A `&&` B
`true`	`true`	`true`
`true`	`false`	`false`
`false`	Any	`false`

A	B	A `\|\|` B
`true`	Any	`true`
`false`	`true`	`true`
`false`	`false`	`false`

A	`!` A
`true`	`false`
`false`	`true`

Using Boolean Variables

private boolean married;
Set to truth value:
```
married = input.equals("M");
```

Use in conditions:

if (married) . . . else . . .
if (!married) . . .

Also called flag
It is considered gauche to write a test such as
```
if (married == true) . . . // Don't
```
Just use the simpler test
```
if (married) . . .
```

Lecture 12 Clicker Question 3

When does the statement

System.out.println (x > 0 || x < 0);

print false?

It always prints false
It never prints false
It prints false when x is 0
It prints false when x is not 0

Lecture 12 Clicker Question 4

What is the opposite of

x < 0 || x > 10

x < 0 && x > 10
x > 0 || x > 10
x >= 0 || x >= 10
x >= 0 && x <= 10

Code Coverage

Black-box testing: test functionality without consideration of internal structure of implementation
White-box testing: take internal structure into account when designing tests
Code coverage: measure of how many parts of a program have been tested
Make sure that each part of your program is exercised at least once by one test case
E.g., make sure to execute each branch in at least one test case
Include boundary test cases: legal values that lie at the boundary of the set of acceptable inputs
Tip: write first test cases before program is written completely → gives insight into what program should do

Lecture 12 Clicker Question 5

How many test cases do you need to cover all branches of the getDescription method of the Earthquake class?

One
Six
Seven
Ten
